8-6 Phaser 5500 Printer Service Manual
Top Rear Cover
PL1.1.3
1. Remove the Rear Panel Cover (page 8-12).
2. Remove the Upper Rear Cover (page 8-15).
3. Remove the screw securing the Top Rear Cover.
4. Remove the Top Rear Cover by sliding it left then lifting as shown.

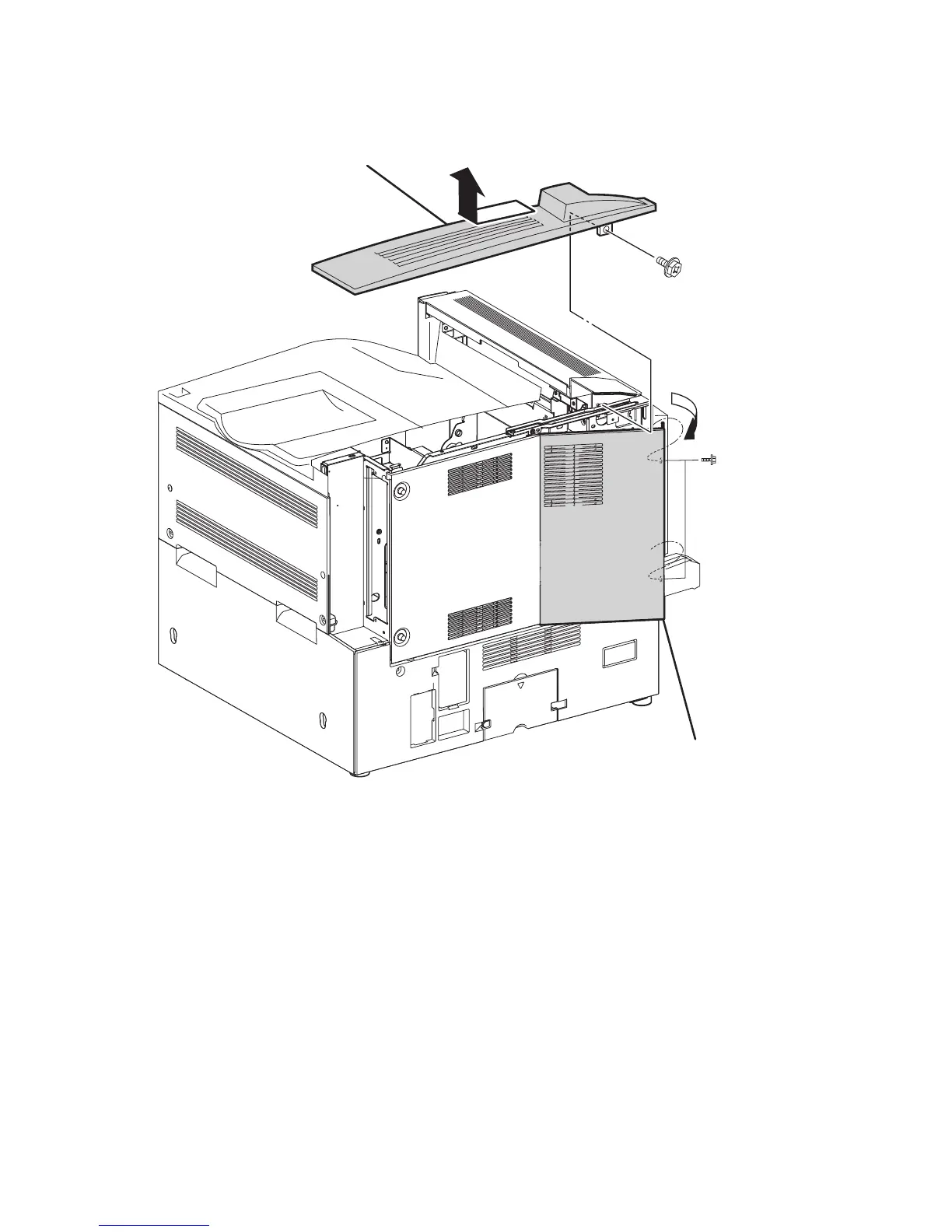

Top Rear Cover
s5500-077
Upper Rear Cover
