FRU Disassembly 8-89
Engine Logic Board
1. Remove the I/P Board Cover (page 8-14).
2. Remove the Upper Rear Cover (page 8-15).
3. Remove the Lower Rear Cover (page 8-16).
PL8.1.5
4. Mark and disconnect all connectors from the Engine Logic Board. Connectors P/
J400, P/J401, and TTM/2TM have a hook. Disconnect by pushing the hook.
5. Remove the six screws securing the Engine Logic Board to the frame.
6. Remove the Engine Logic Board.

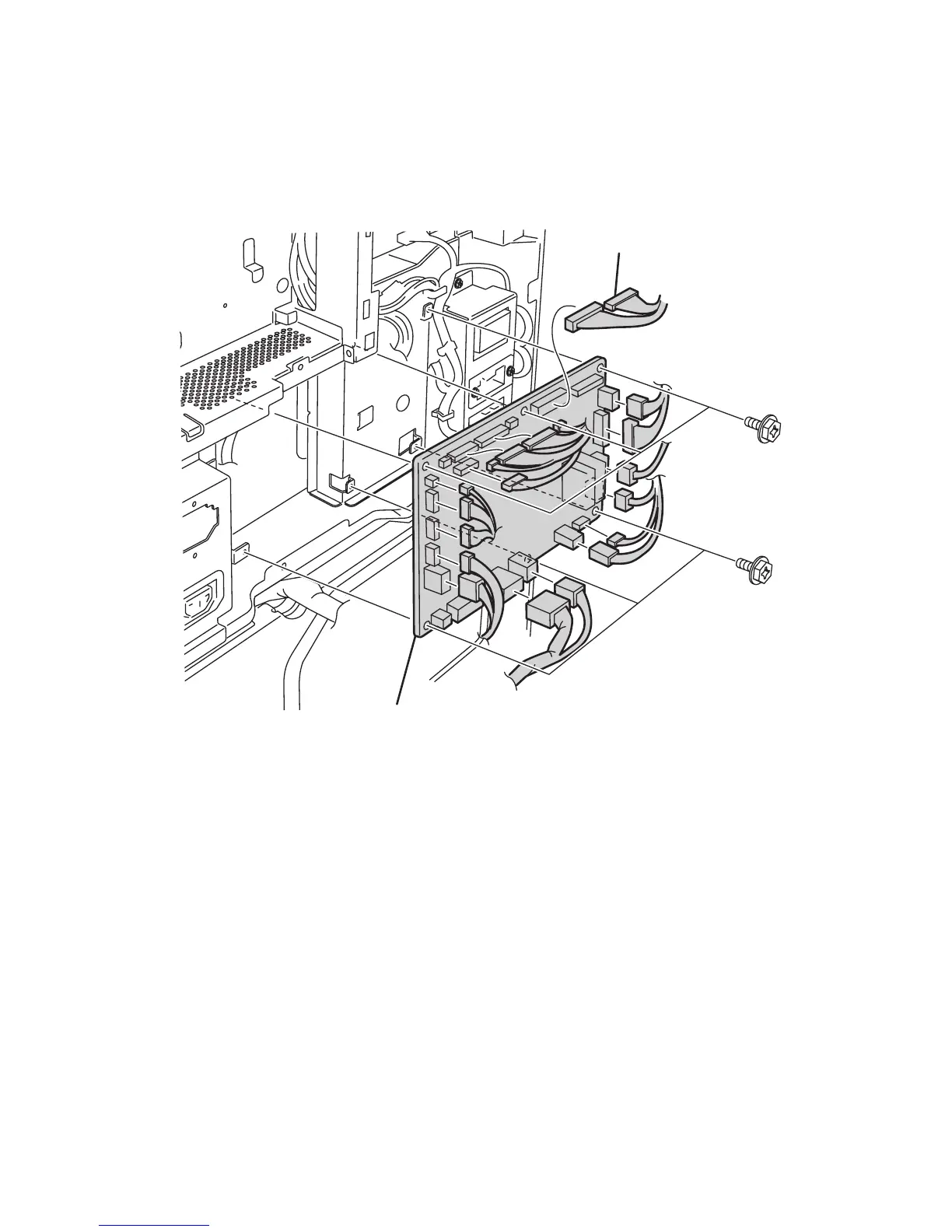

Engine Logic Board
Connectors
s5500-184
