FRU Disassembly 8-21
Tray 3 Feeder
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
3. Remove Door A (page 8-46).
4. Open Door B.
5. Remove the Take Away Bracket (page 8-40).
6. Pull out Tray 3.
PL2.1.7
7. Release the boss on the both ends on the Feed Out Chute securing it to the frame.
Release the right side first and remove the chute.
8. Remove the two screws securing the Take Away Chute to the frame.
Caution
The Take Away Chute is easily damaged if the latches located on the backside of
the chute are not released before attempting to remove the chute from the frame.
Release these latches before attempting to remove the Take Away Chute.

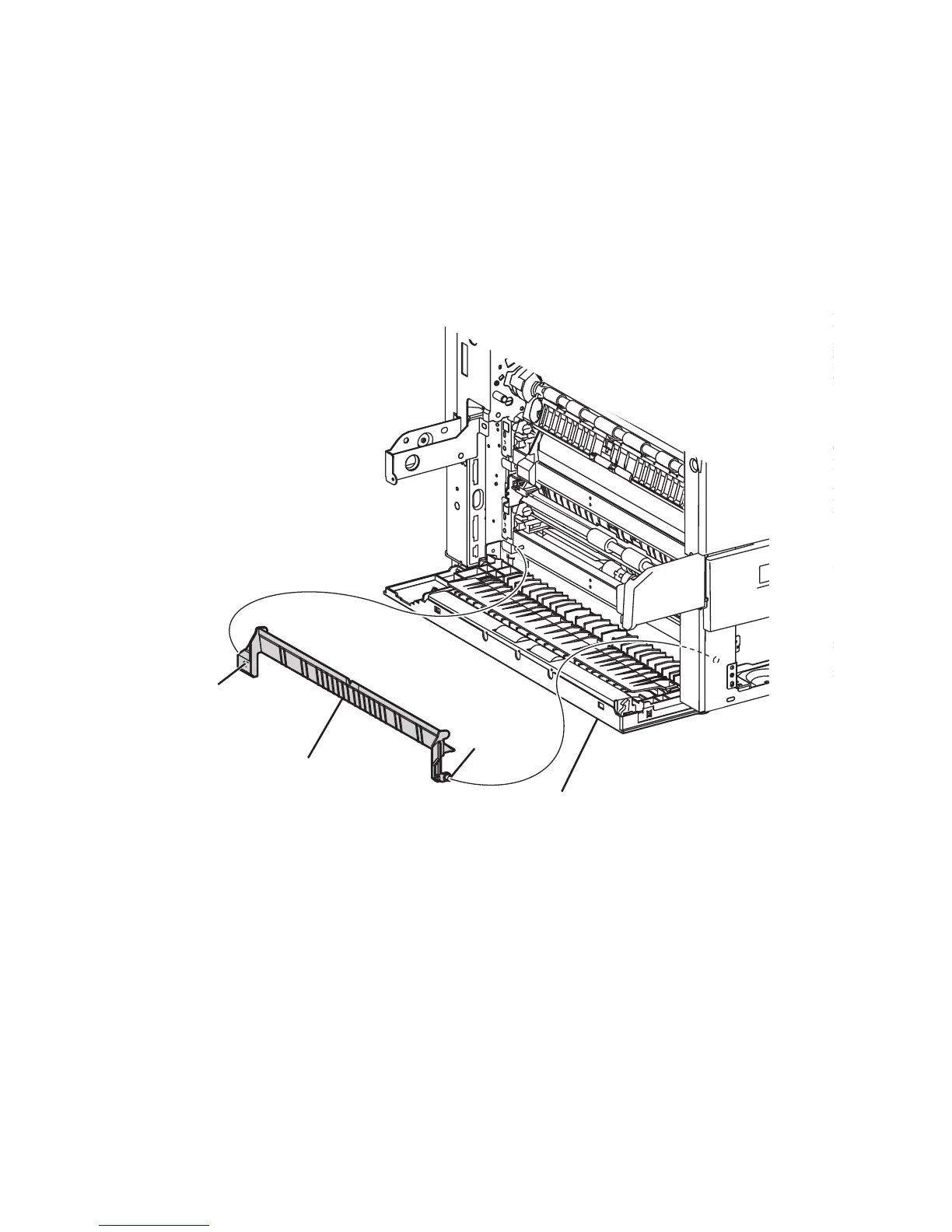

Feed Out Chute
Door B
Boss
Boss
s5500-095
To Next Page
