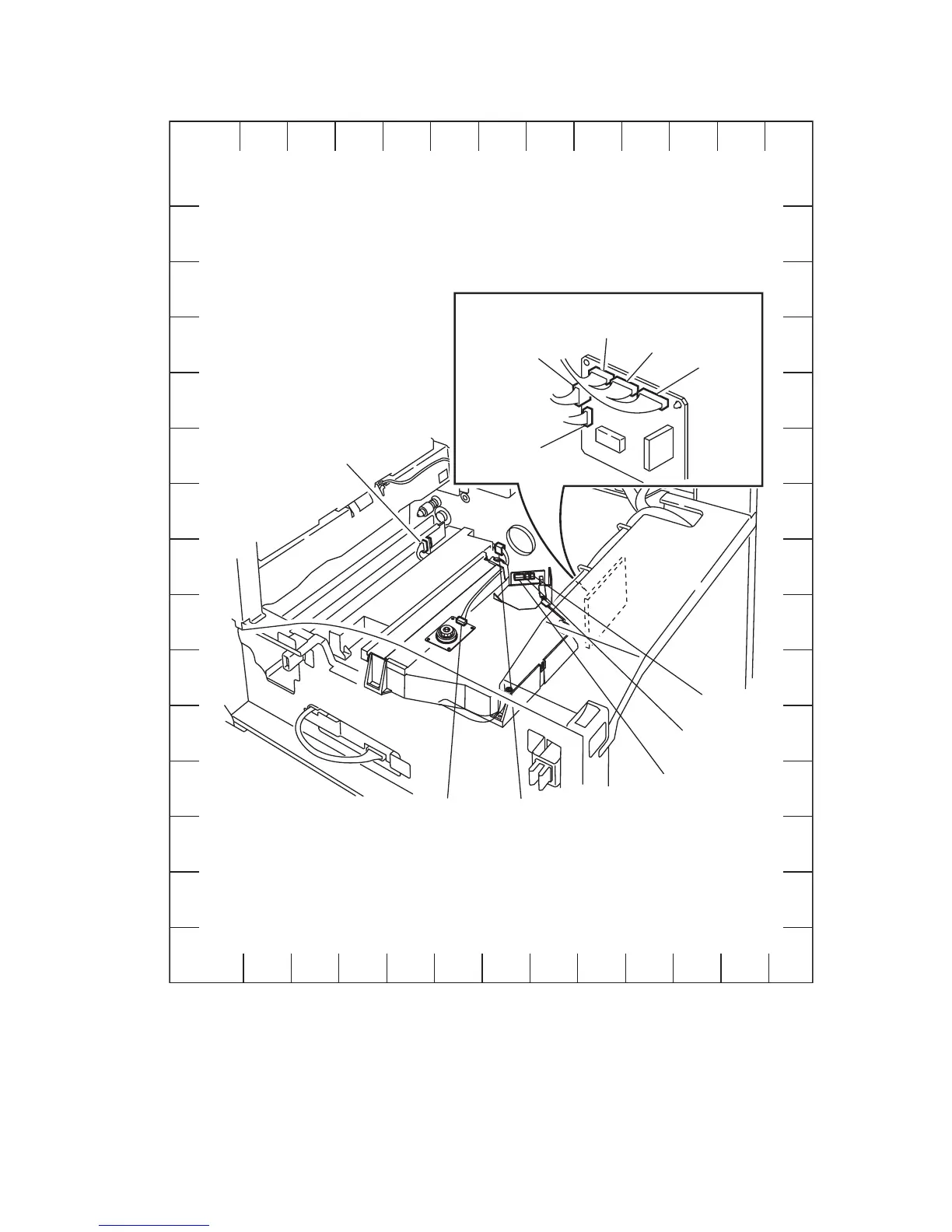

Wiring Diagrams 10-7
Laser Assembly and Exit PWB
A
117
118
119
120
121
122
123
124
125
126
127
128
129
130
116
BCDEFGH I J KL
s5500-210
170
140
160
620
126
430
432
434
433
431
130
Exit PWB
