FRU Disassembly 8-73

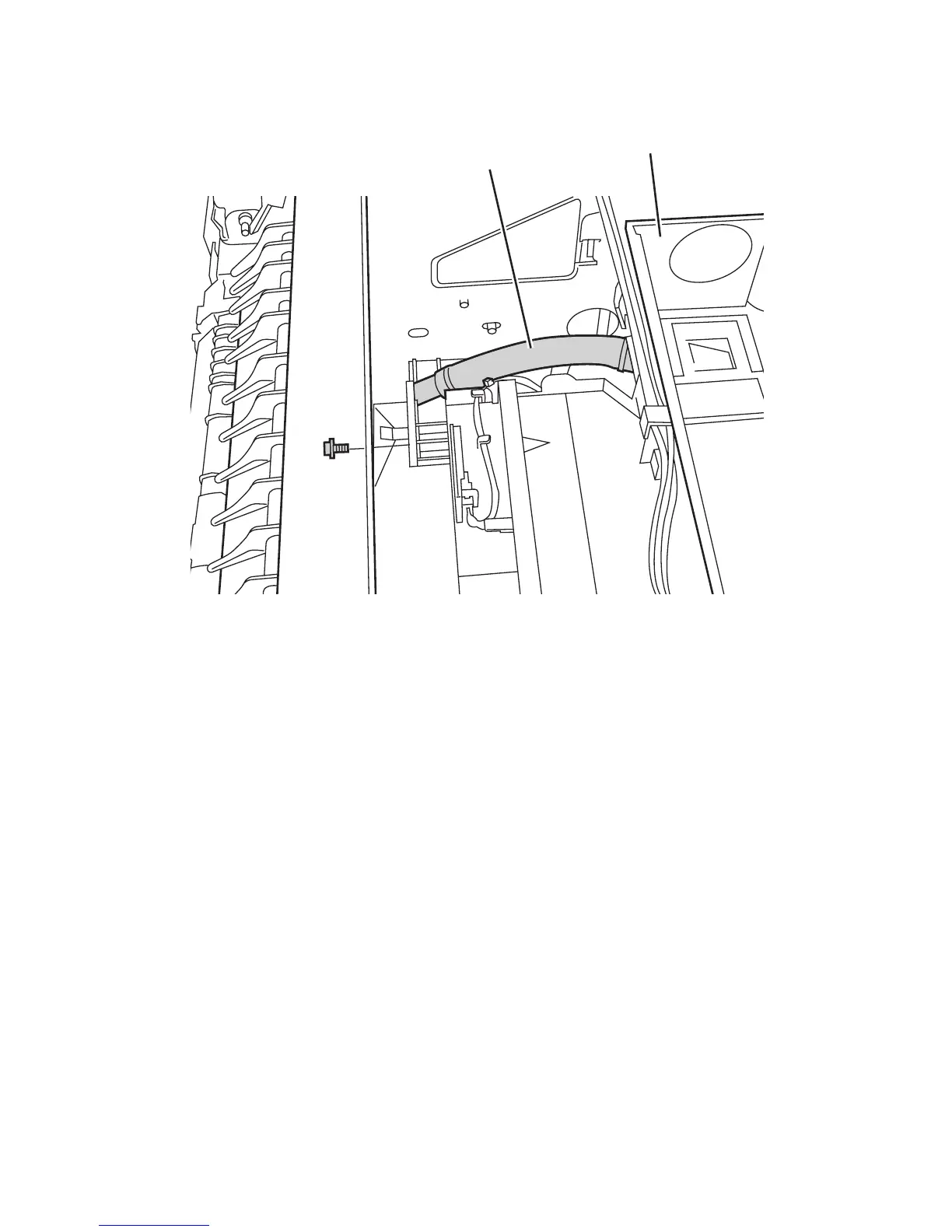

13. While pushing the Toner Dispense Assembly toward the left side, reach in from
the Left end and remove the screw securing the Dispense Tube to the frame.
Replacement Note
Fit the hole on the Toner Dispense Assembly to the Toner Dispense Motor.
Also, fit the shaft into the hole on the Toner Dispense Motor.
Toner Dispense Motor
1. Remove the Front Left Cover (page 8-5).
2. Remove the Top Cover (page 8-7).
3. Remove the Drum Cartridge.
4. Remove the Toner Cartridge.
5. Remove the Front Door (page 8-8).
6. Remove the Inner Main Cover (page 8-9).
7. Remove the Drum Cartridge Fan Intake Duct (
s5500-594
Toner Dispense
Assembly
Dispense
Tube
To Next Page
