8-72 Phaser 5500 Printer Service Manual
9. Remove the Inner Main Cover (page 8-9).
PL5.1.10
10. Release the harness from the clamps on the left side of the Toner Dispense
Assembly.
11. Disconnect the harness Toner Cartridge CRUM PWB on the right side.
12. Remove the two screws securing the Toner Dispense Assembly to the frame.

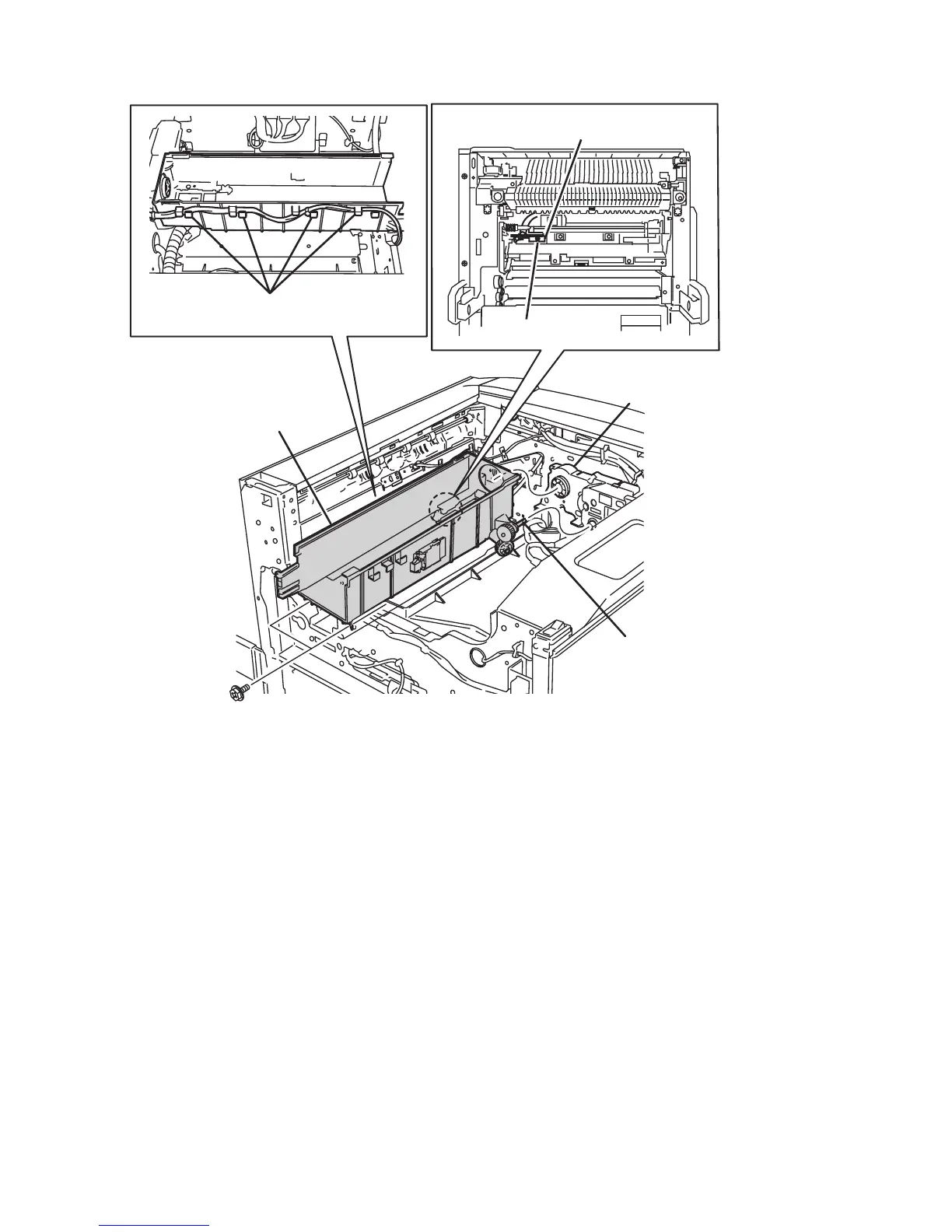

s5500-161
Toner Dispense
Assembly
Toner Dispense
Motor
Shaft
Screw
Toner Dispense Assembly
Harness Clamps
