FRU Disassembly 8-33
Tray 1/MPT No Paper Sensor Actuator
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
PL3.1.3

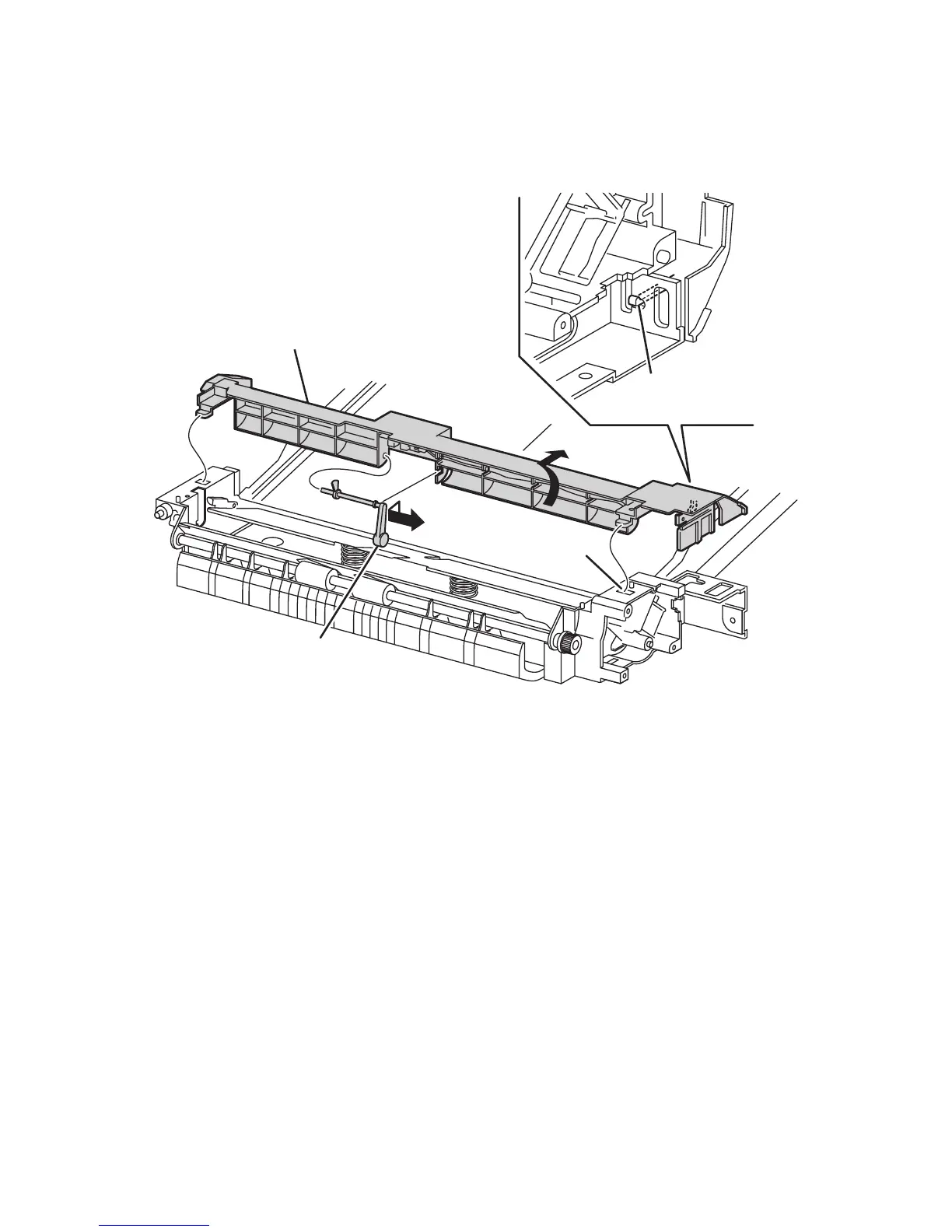

3. Remove the two hooks securing the upper frame to the printer.
4. Remove the upper frame by moving it in the direction of the arrow.
5. Pull the right side of the Actuator toward you, then pull it out of the hole in the
upper frame.
Replacement Note
When installing the actuator into the Upper Frame, press on both sides of the
actuator pivot point to avoid breaking the part.
Actuator
s5500-125
Upper Frame
Hook
(Upper Frame)
Slot
To Next Page
