Print-Quality Troubleshooting 5-23
Horizontal Deletions
A deletion is an area of the print where the image is missing or extremely light.
Horizontal deletions extend across the page.
Initial Actions
■ Check that the paper supply is dry and meets specifications.
■ Inspect the paper path for items, such as staples, paper clips, and paper
scraps.
■ Check the installation of the Drum Cartridge.
■ Check that the Drum Cartridge ground contacts are clean.
■ Check the Transfer Roller for contamination or wear.
■ Check that rollers and other paper path components are clean and
unobstructed.
Horizontal Deletions Troubleshooting Reference

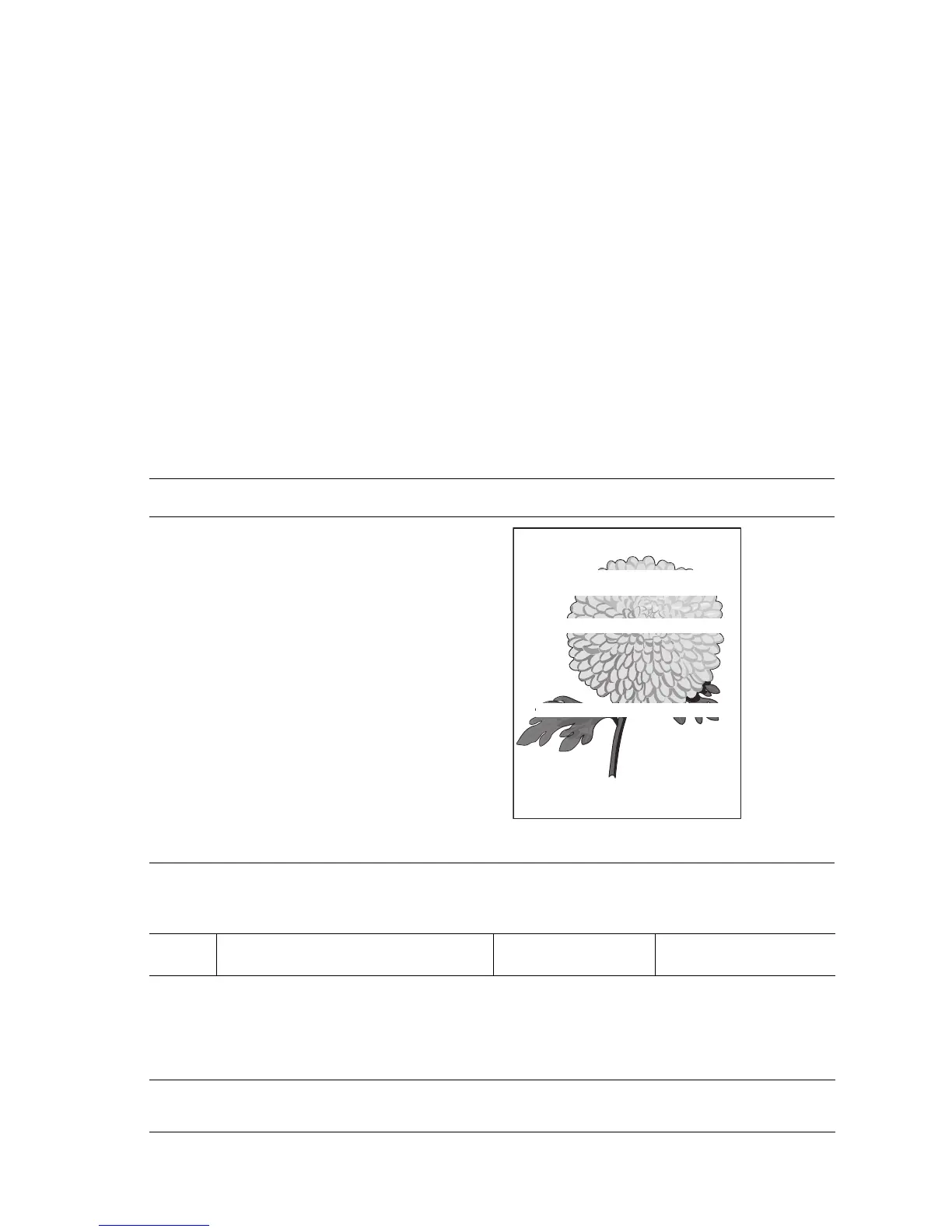

Applicable Parts Example Print
■ Drum Cartridge
■ Transfer Roller
■ Laser Assembly
■ Fuser
■ Image Processor Board
■ Engine Logic Board
Horizontal Deletions Troubleshooting Procedure
Step Actions and Questions Yes No
1
Check paper condition.
1. Load new, dry paper.
2. Print a Test Print.
Does the problem still occur?
Go to Step 2. Problem solved.
2
Check the paper path.
Is the paper path clear?
Go to Step 3. Remove obstacles or
contamination.
s5500-060
To Next Page
