2-32 Phaser 5500 Printer Service Manual
Printer Drive and Electrical
The Drive subsystem includes motors and their driven assemblies.
■ Motor Assembly
This assembly includes two motors. One provides the drive for paper transport
and a second drives the Drum Cartridge. The assembly gets +24
VDC power
from the LVPS. The motor enable and speed control signals come from the
microprocessor on the Engine Logic Board.
■ Toner Dispense Motor
This drives the Toner Cartridge and dispense tube auger to gradually release toner
to the Drum Cartridge.

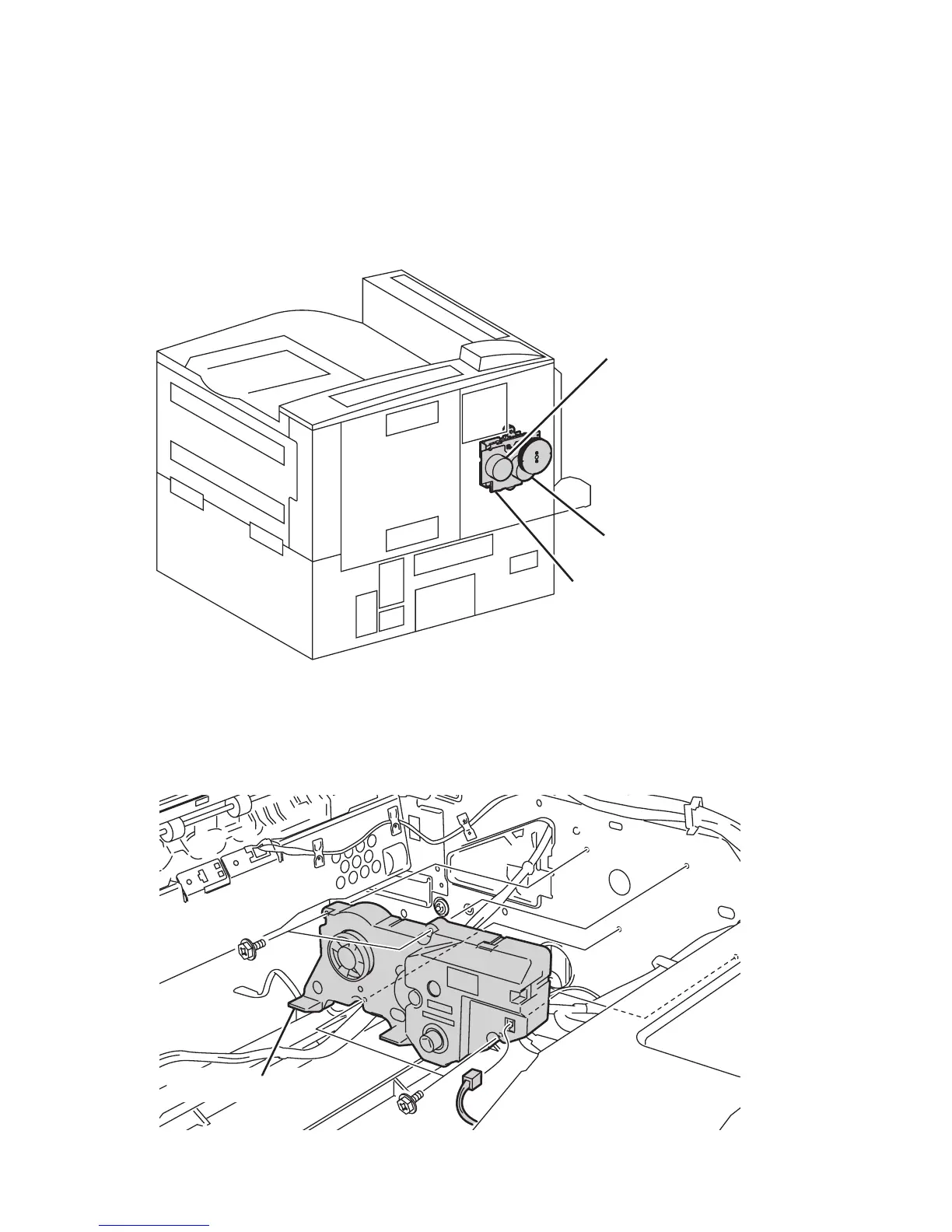

s5500-040
Main Motor
Drum Motor
Motor Assembly
s5500-596
Toner Dispense Motor
