Fuji Xerox Phaser 5500 User Manual

FRU Disassembly 8-69
21. While pressing the Drum Motor gear located on the rear side of the Motor
Assembly, lift the left side of the SUB Guide Assembly upward.
22. Disconnect the connector from the Environmental Sensor PWB.
23. Remove the screw securing the Environmental Sensor PWB to the SUB Guide
Assembly.
24. Remove the Environmental Sensor PWB.

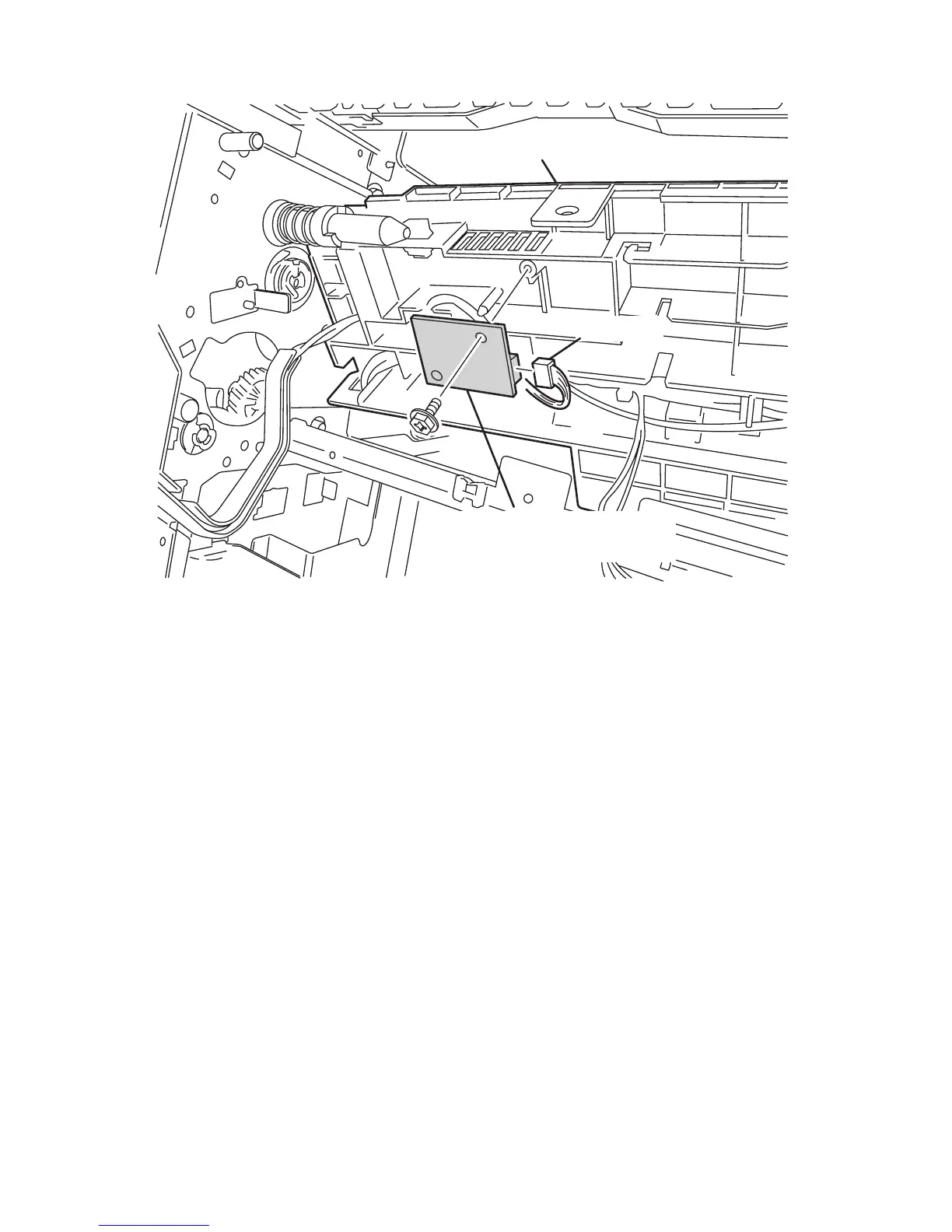

Humidity And Temperature
Sensor
Sub Guide Assembly
Connector
s5500-15
9
