8-68 Phaser 5500 Printer Service Manual
19. Slide the SUB Guide Assembly toward the left side and disconnect the connector
from the Front Harness A.

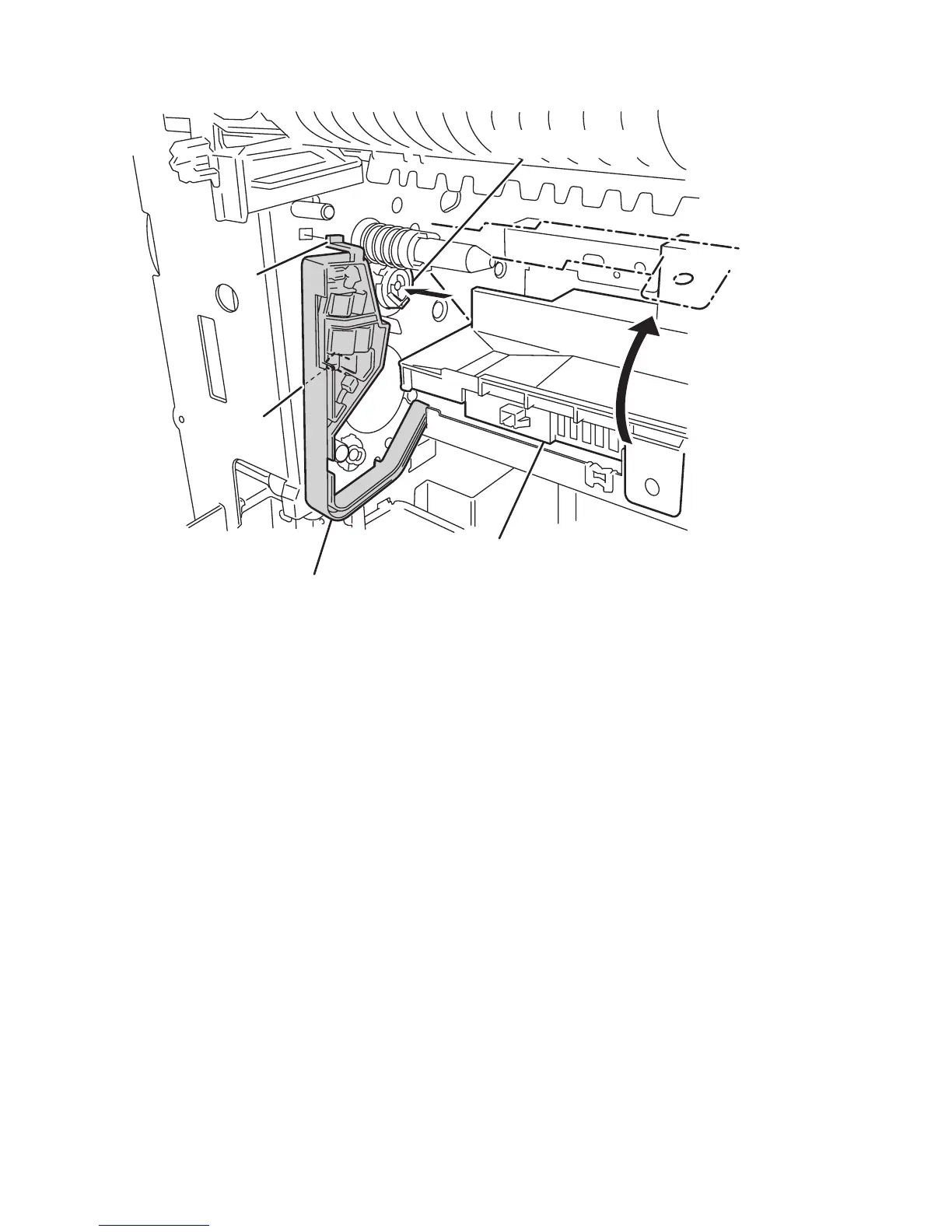

20. Remove the two hooks securing the Contact Cover to the frame.
Hook
Hook
Contact Cover
Sub Guide Assembly
Drum Motor Gear
s5500-156
