FRU Disassembly 8-67

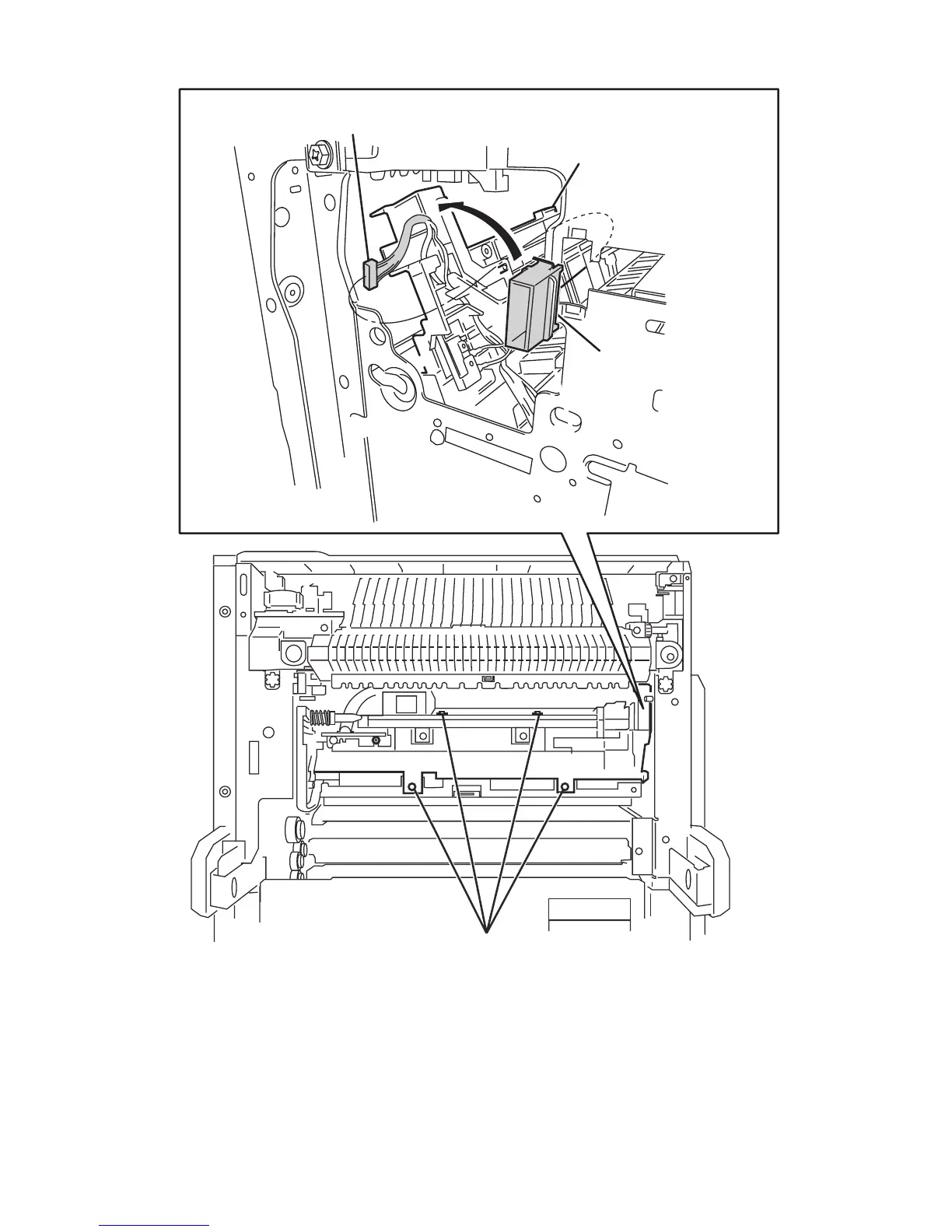

16. Release the harness from the clamp on the Laser C.
17. Remove the Laser C by moving it in the direction of the arrow.
18. Remove the four screws securing the SUB Guide Assembly to the frame.
Screws
Sub Guide Assembly
Connector
Junction Connector
s5500-155
