8-48 Phaser 5500 Printer Service Manual

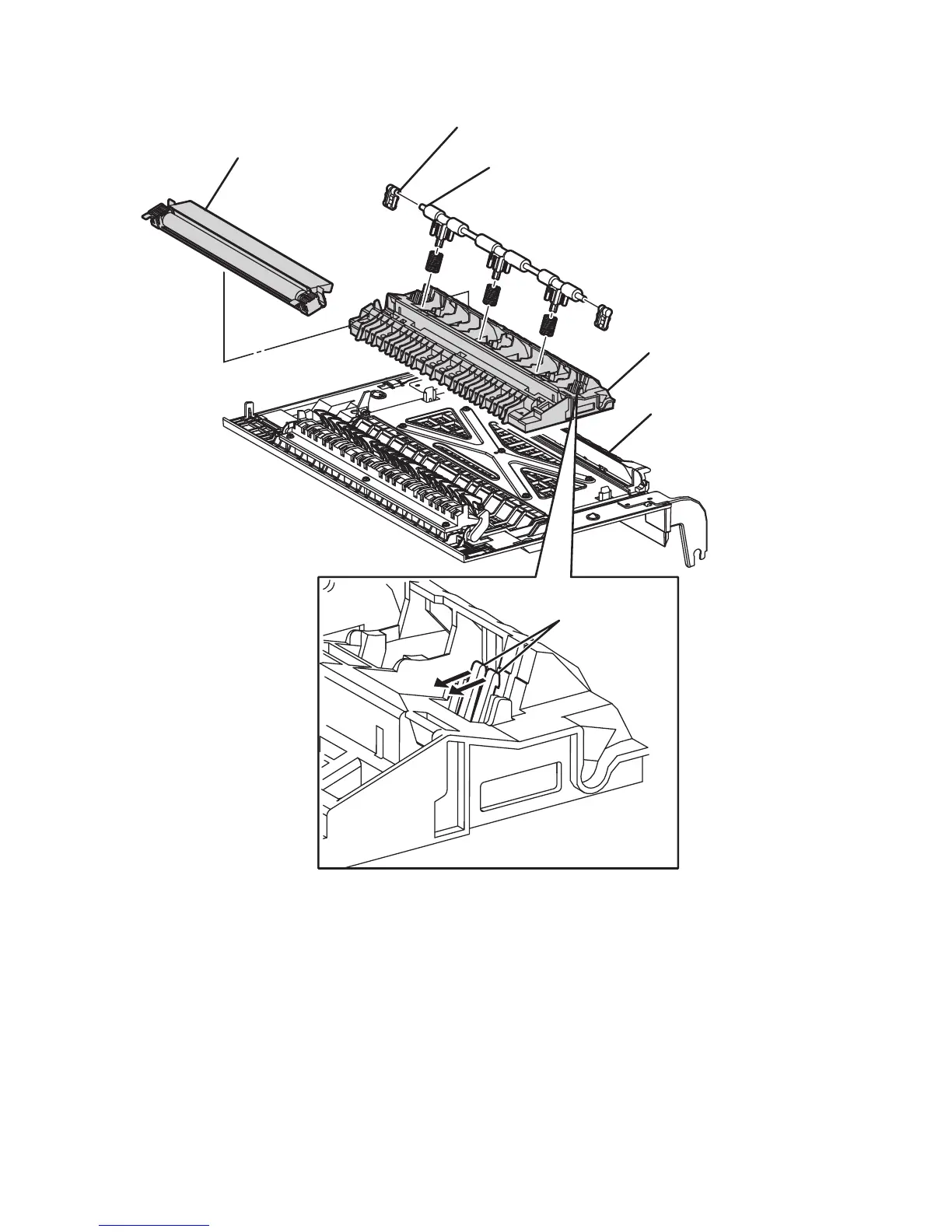

4. Remove the hooks of the two Pinch Out Bearings on the left and right securing
the Registration Rollers to the Chute as shown in the figure.
PL4.3.3
5. Move the Registration Rollers in the direction of the arrow to remove.
Registration Pinch Roller
Bearing
Hooks
s5500-146
Transfer Roller
L/H Chute
Door A
