FRU Disassembly 8-37
6. While releasing the hooks securing the Pick Up Gear to the Pick Up Shaft,
remove the Pick Up Gear together with the Spring, Cam Gear and Stopper Lever.
7. Remove the Cam Gear Spring securing the Pick Up Gear to the Cam Gear.

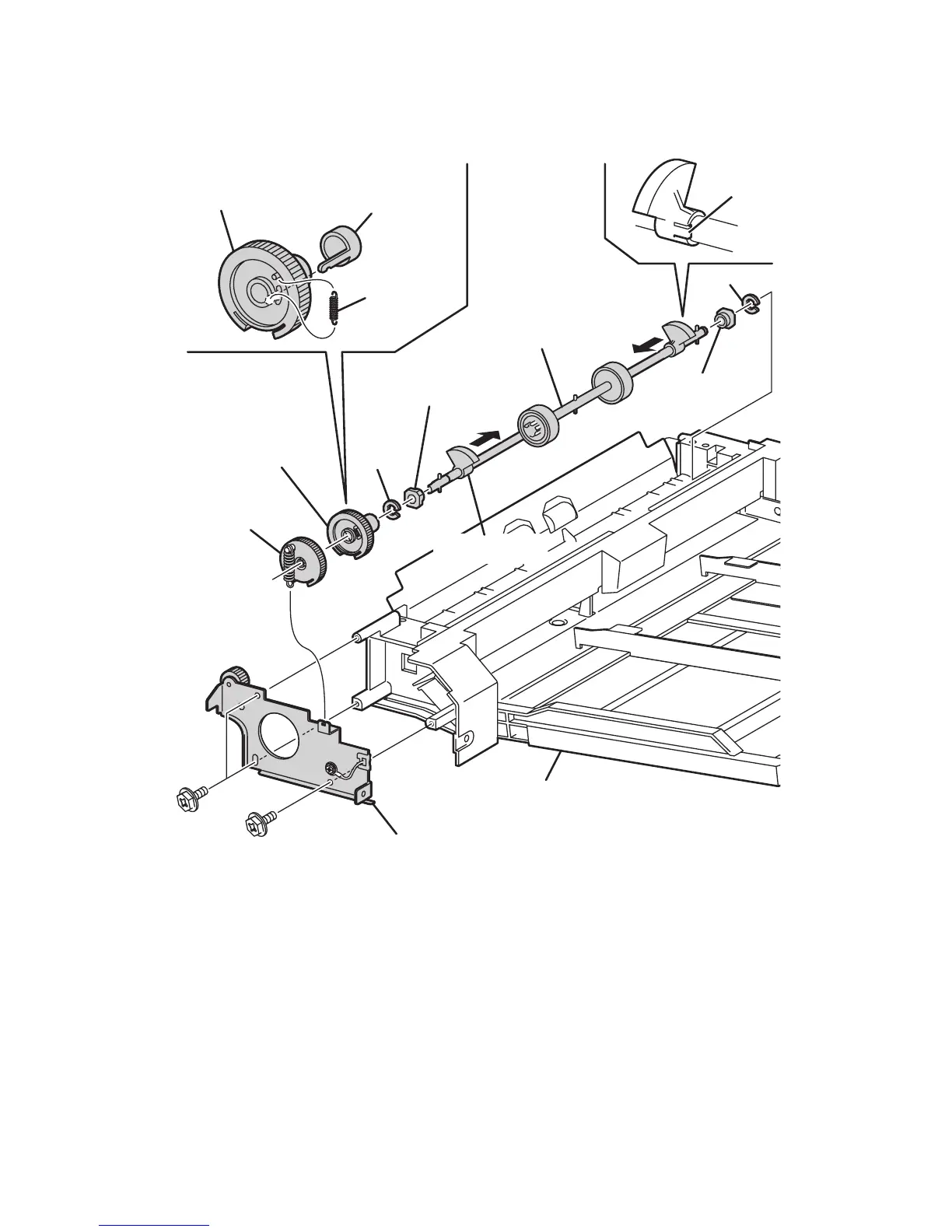

PL3.2.16
Cam Gear
Cam Gear
Bearing 8
Bearing 8
Pick Up Shaft
Pick Up Cam
E-Ring
Stopper
Lever
Gear Bracket
s5500-132
Pick Up Gear
Hook
Spring
E-Ring
Lower Frame
