Fuji Xerox Phaser 5500

FRU Disassembly 8-75
6. Remove the Toner Dispense Assembly (page 8-71).
PL5.1.14
7. Disconnect the three connectors from the Laser Assembly.
8. Disconnect the connector from the junction connector.
9. Remove the four screws securing the Laser Assembly to the frame.
10. Lift the Laser Assembly from the frame.

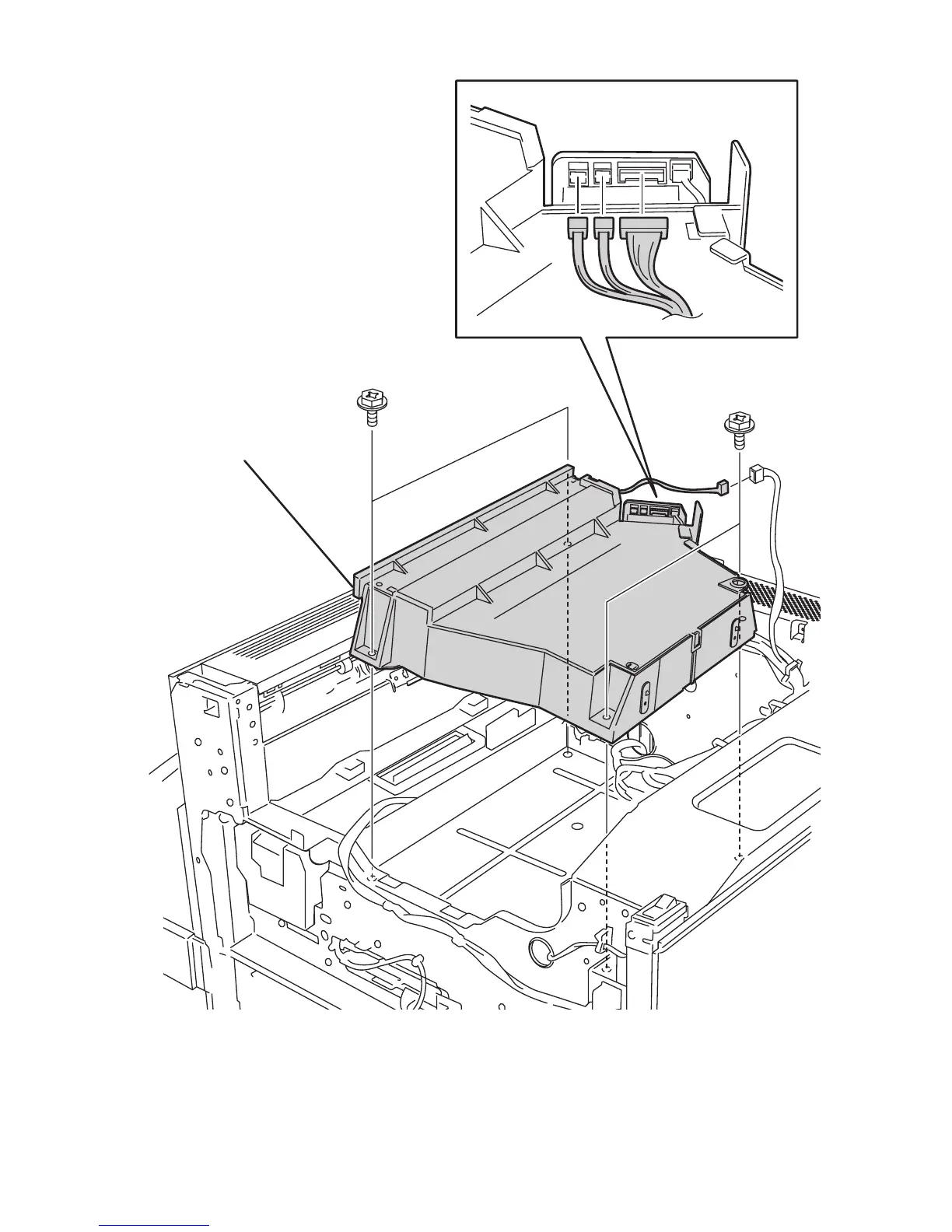

Laser Assembly
s5500-164
