FRU Disassembly 8-79
9. Remove the Main Drive Belt (page 8-83).
10. Disconnect the connector from the Offset Motor.
11. Disconnect the two connectors from the two sensors.
12. Remove the two screws securing the Exit Transport Assembly to the frame.
13. Remove the Exit Transport Assembly by lifting upward.

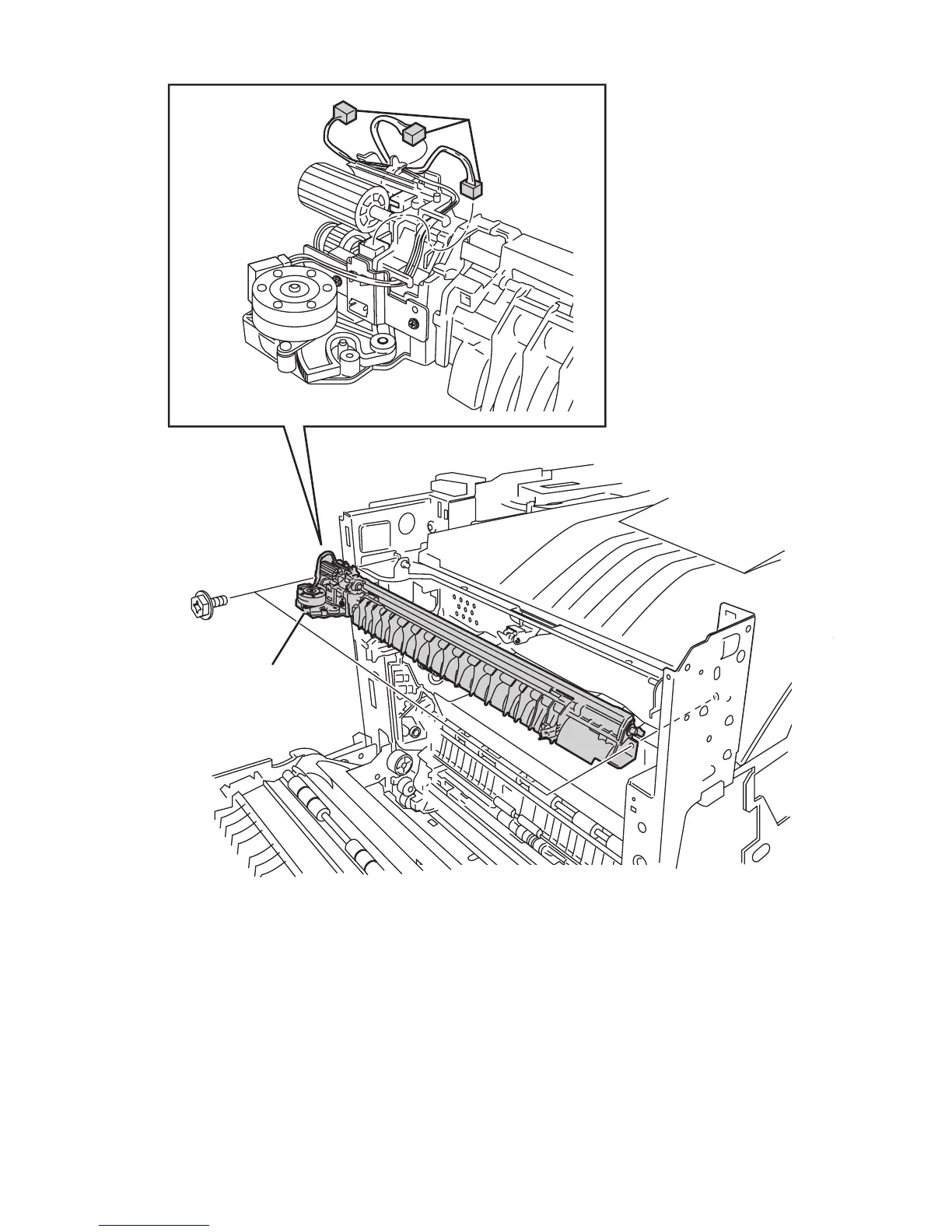

s5500-168
Exit Transport
Assembly
Harness
Connectors
