Adjustments and Calibrations 6-5

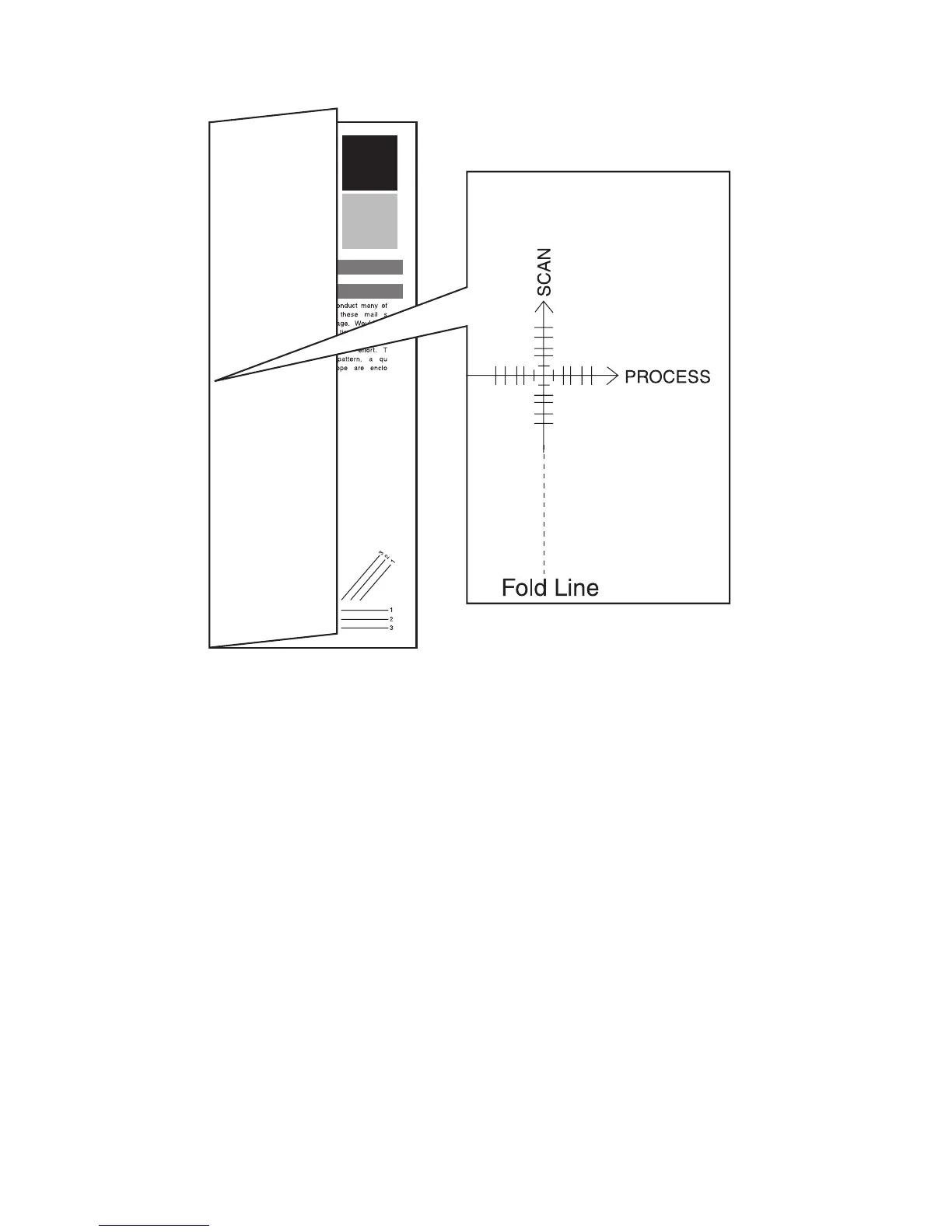

5. For the Process direction, leading to trailing edge, fold the test print as shown
below.
6. Check the point where the fold line intersects the target. Maximum deflection
from the centerline is 2.5 mm in either direction. The target lines are graduated in
1 mm. increments.
If the fold line falls more than 2.5 mm from the target, use the following procedure to
realign the image on the paper.
s5500-051
