FRU Disassembly 8-65
10. Remove the Lower Rear Cover (page 8-16).
PL5.1.5

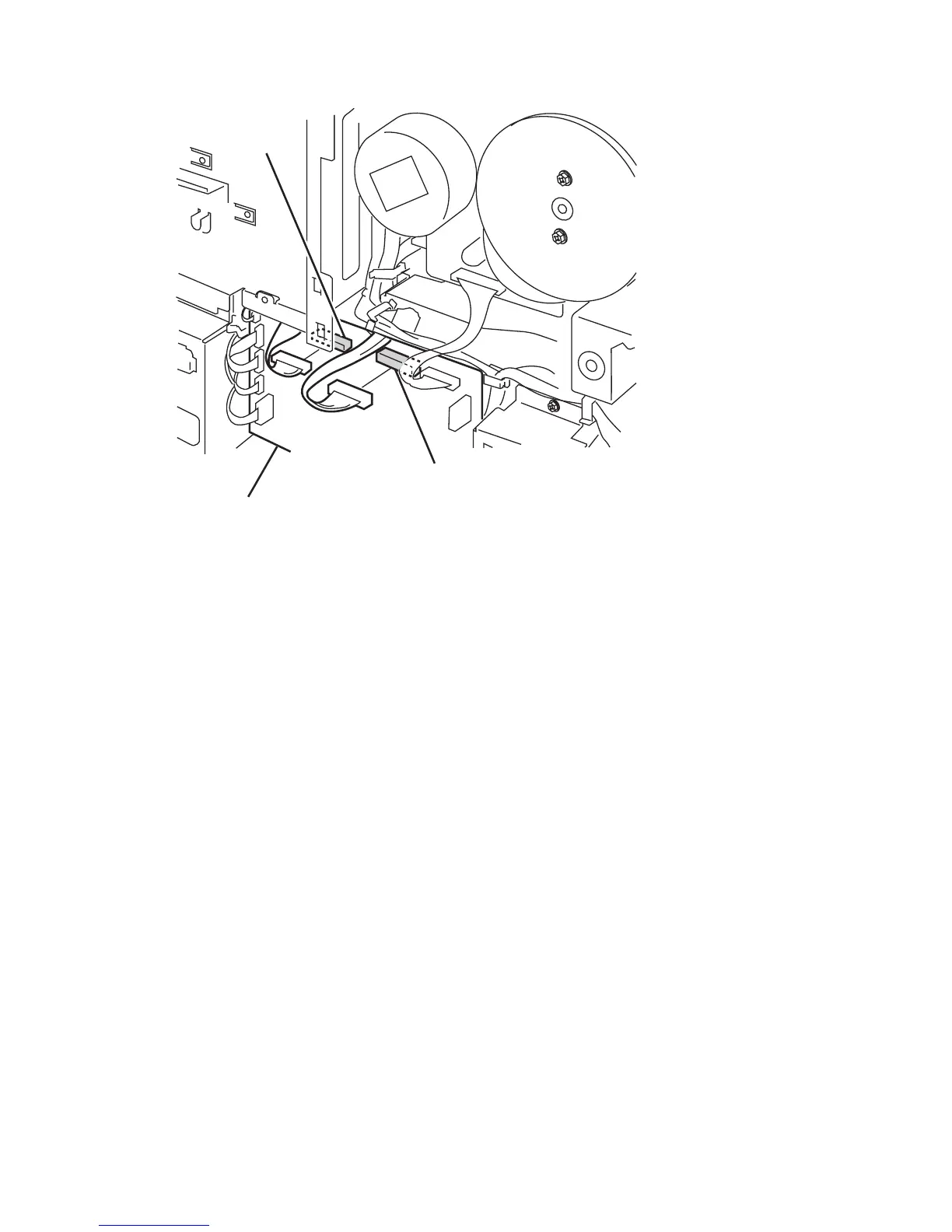

11. Disconnect the two connectors (P403 and P404) from the Engine Logic Board.
12. Release the harness from the clamp on the printer.
13. Open Door A.
Engine Logic Board
s5500-153
P403
P404
