Fuji Xerox Phaser 5500 User Manual

FRU Disassembly 8-87
3. Remove the Upper Right Cover (page 8-11).
PL8.1.2
4. Remove the screw securing the bracket to the frame.
5. Remove the bracket and switch to the left to remove from the frame.
6. Disconnect the four connectors from the Power Switch.
7. Release the hooks securing the Power Switch to the bracket as shown.

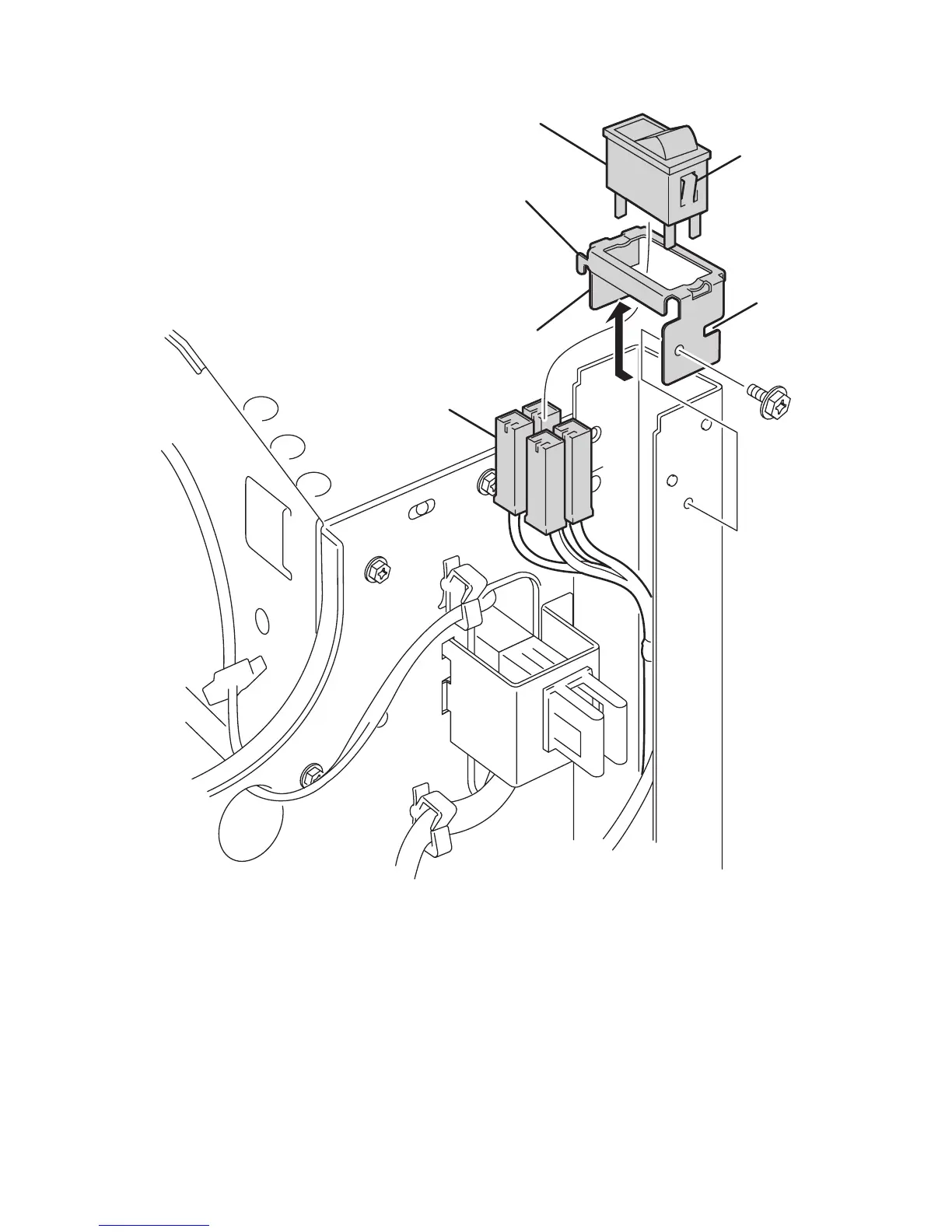

Replacement Note
Fit the notch on the Power Switch to the boss on the frame.
Connector
Hook
Switch Bracket
Power Switch
Notch
s5500-180
Hook
