HAIMA 7 - Page 102

Flywheel and clutch
66

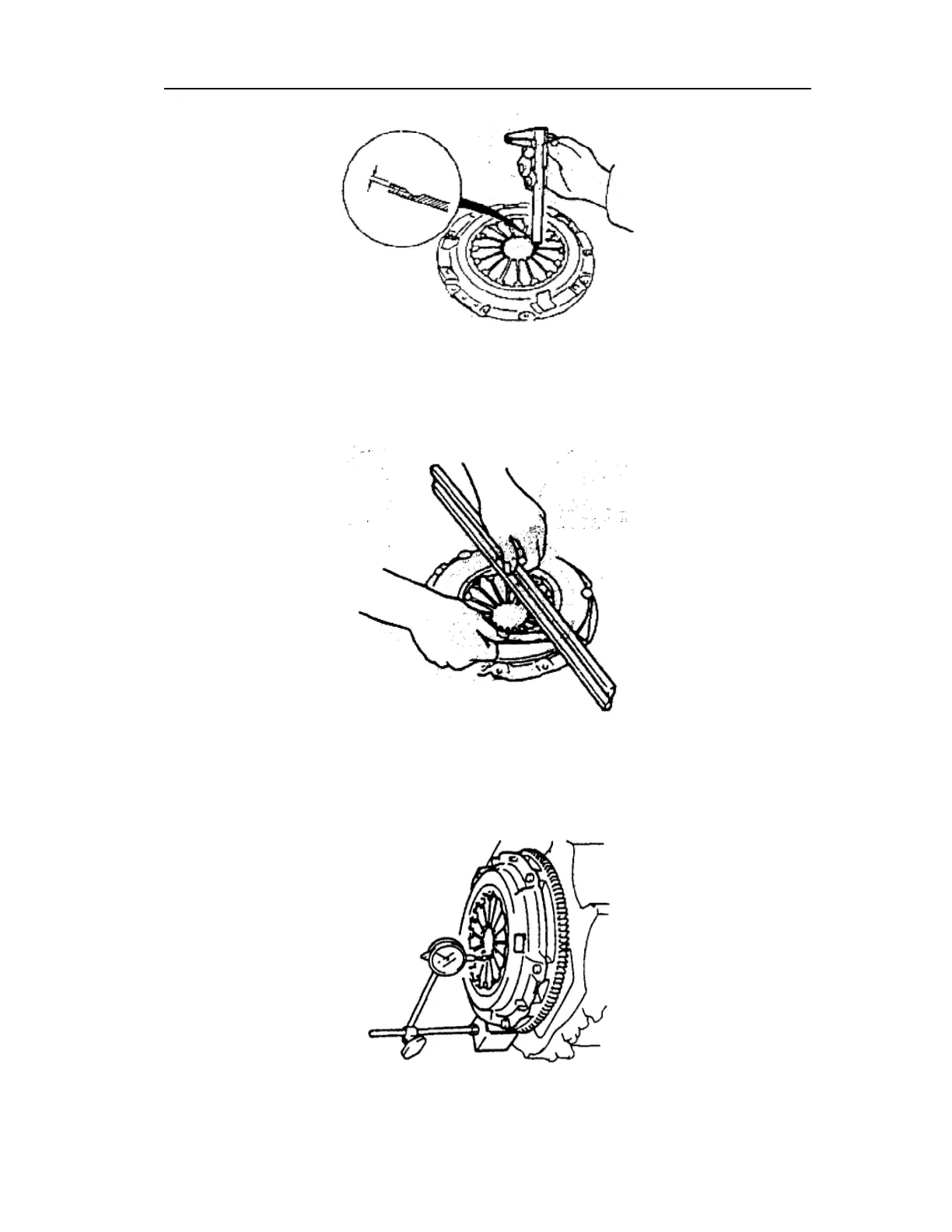

2. Use as knife straight edge and feeler to measure the flatness of press disc.
l If the standard exceeded, the clutch assembly shall be replaced.
Max. clearance: 0.05mm {0.0019in}
3. Fit the dial gauge on the cylinder block, turn the flywheel to check the radius run-out of
diaphragm spring.
l If the standard exceeded, the clutch compressing disc shall be replaced.
Radical run-out: ≤0.6mm {0.024in}
