HAIMA 7 - Disassembly;Assembly Power Steering Oil Pump

Steering system
N-15

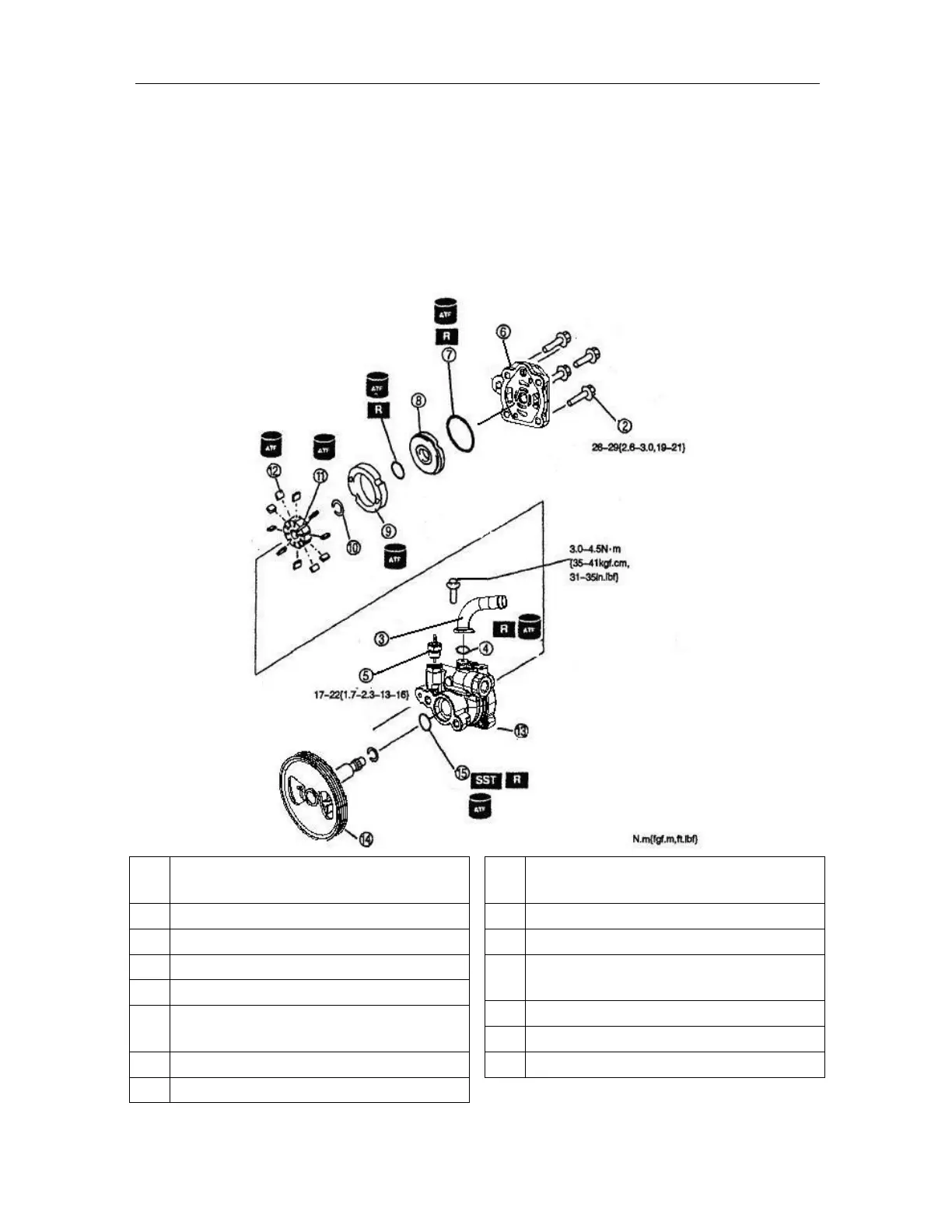

Disassembly/assembly power steering oil pump
Attention
The following operations can be carried out only when the “O” ring and oil seal are to be replaced. If
necessary to check other items, the component of pump body shall be replaced.
1. Disassemble in the order as shown in the Table.
2. The assembly is in the reversing order of disassembly.
1
Components of power steering oil pump:
Refer to the Decomposition Description
2 Bolt
3 Oil suction pipe
4 “O" ring
5 Components of pressure switch
6
Rear pump body:
Refer to the Assembly Description
7 “O” ring
8 Side disc
9
Internal camshaft:
Refer to the Assembly Description
10 Snap ring
11 Rotor
12
Blade:
Refer to the Assembly Description
13 Front pump body
14 Shaft group body
15 Oil seal: Refer to Assembly Description
