Flywheel and clutch
67

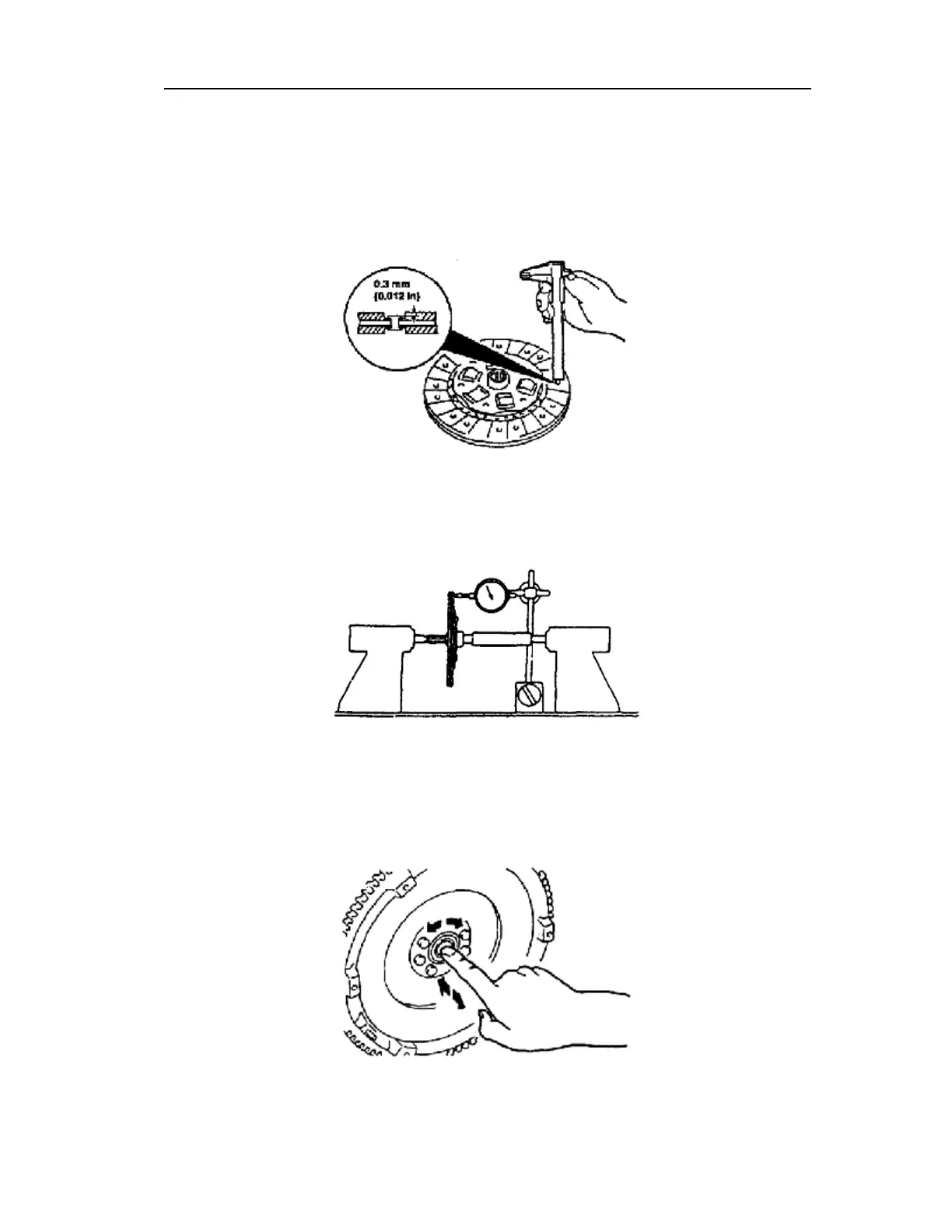

Check of clutch plate
1. Use a vernier caliper to measure the rivets at both sides and the depth of disc plate
between the surfaces.
l If the standard exceeded, the clutch disc plate shall be replaced.
Depth: ≥0.3mm {0.012in}
2. Use a dial gauge to measure the radical run-out of clutch disc plate
l If the standard exceeded, the clutch disc plate shall be replaced.
Radical run-out: ≤0.7mm {0.028in}
Check of pilot bearing
Forcibly turn the bearing in axis direction instead of removing the pilot bearing.
l If unable to rotate or there is strong resistance or abnormal noise, the pilot
bearing shall be replaced.
