Dashboard and control panel
S-45
2. Open the armrest box behind the auxiliary
fascia console and turn over backward;
3. Remove the panel of auxiliary fascia console;
4. Loosen the screws and move out the auxiliary
fascia console;
5. Install as per the reverse order with that of
removal.

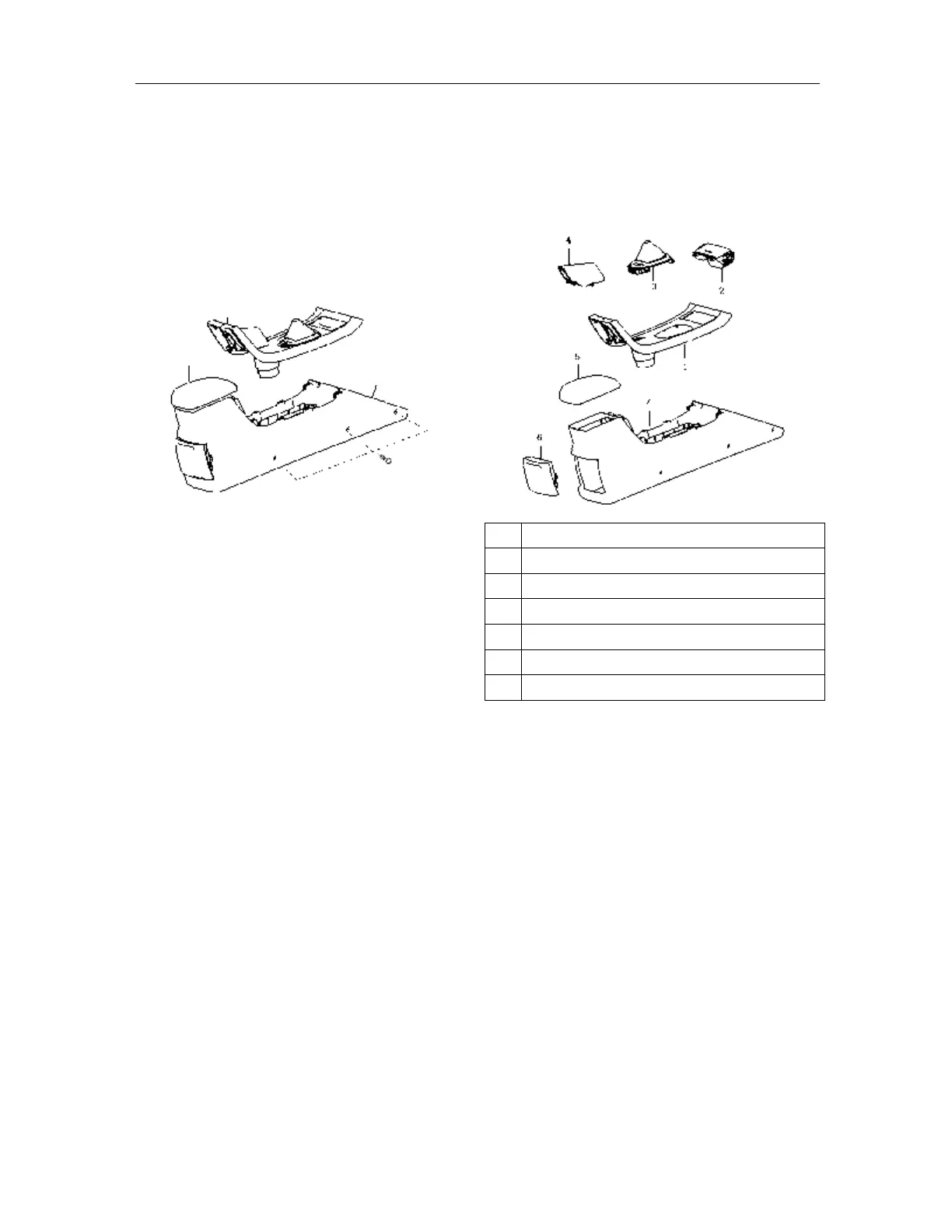

Disassembly/assembly of auxiliary fascia
console
Break down in the order as shown in the Table
below:
Install as per the reverse order with that of removal.
1 Auxiliary fascia console panel
2 Ashtray assembly
3 Shift sleeve assembly
4 Handbrake sleeve
5 Armrest box of auxiliary fascia console
6 Rear cup holder assembly
7 Auxiliary fascia console body
panel assembly
Armrest
console
Screw
