HAIMA 7 - Use of Diagnostic Diagram

Use of diagnostic steps
GI-5
Use of diagnostic diagram

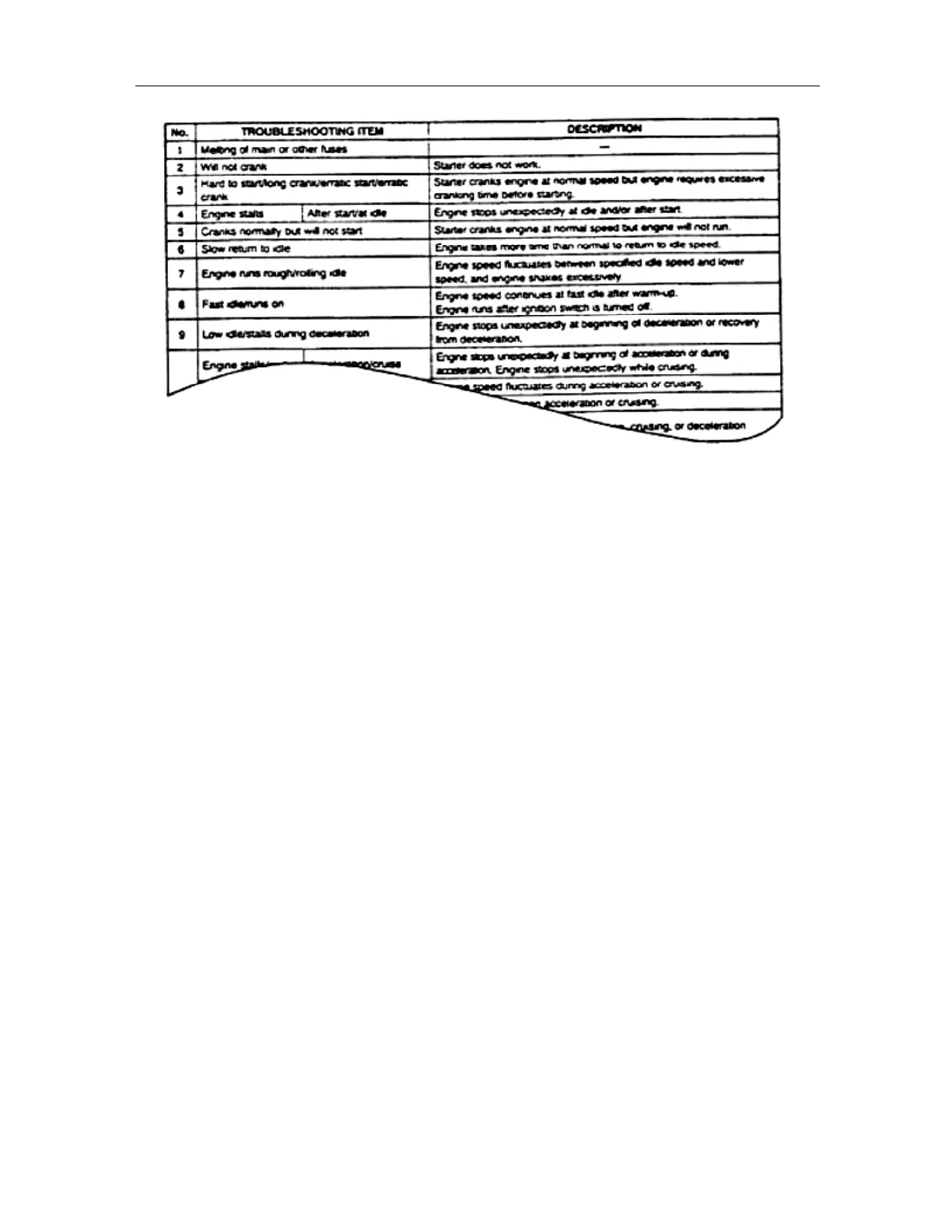

Ÿ The diagram lists out the consequence relationship of symptoms with the faults.
Ÿ The diagram applies to quickly lessen the scope of diagnostic when multiple fault symptoms are in
display.
Ÿ According to the fault symptoms obtained based on the following Fast Diagnostic Diagram，check the
fault relevant causes.
