Basic system
U-6
Basic system

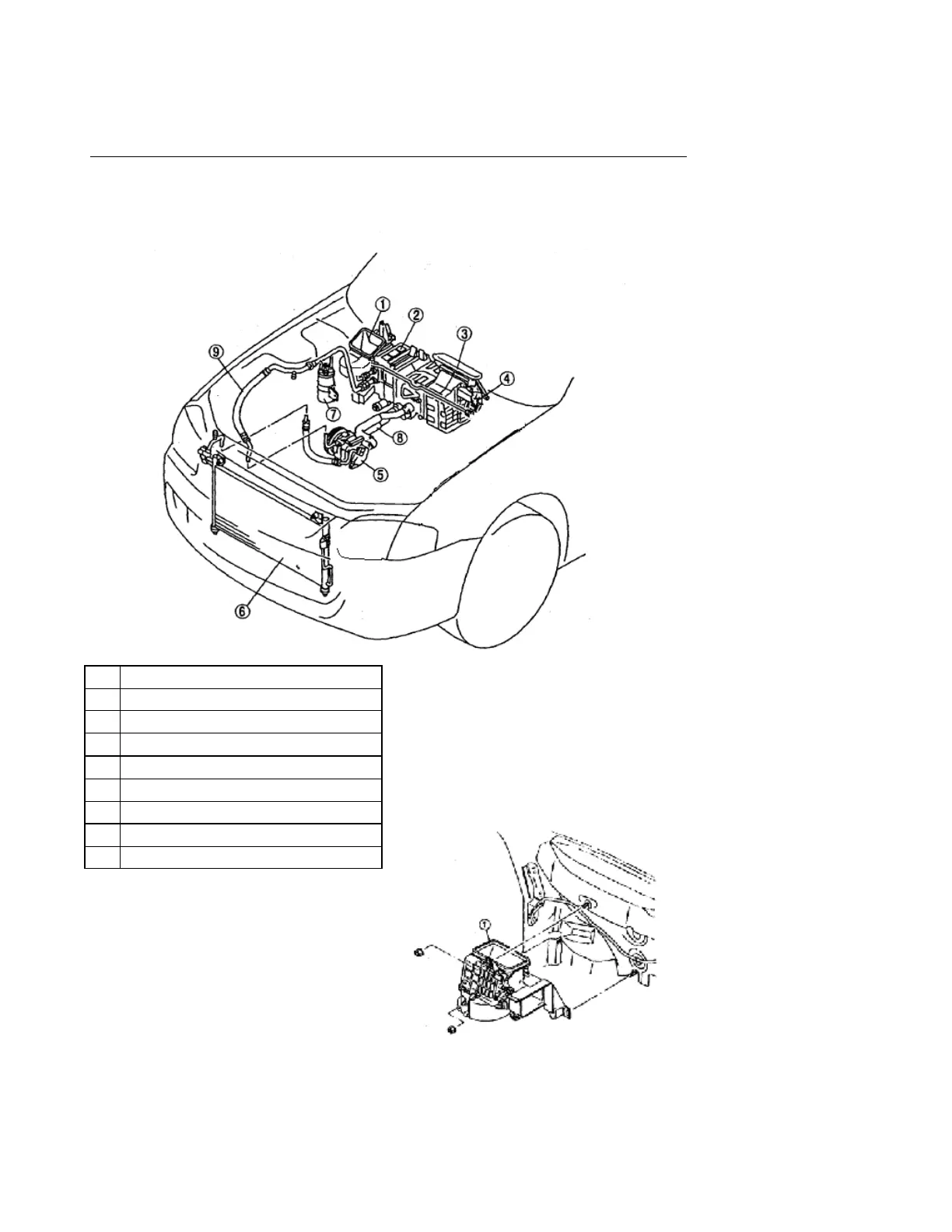

Structural view
1 Air intake
2 Blower evaporator assembly
3 Warm air blower assembly
4 Reat airducting
5 A/c compressor
6 Condenser
7 Fluid reservoir
8 Warm air blower water pipe
9 Refrigerant
Removal and installation of blower
evaporator assembly
1. disconnect the negative battery cable.
2. remove the dashboard. (refer to section s,
dashboard removal /installation)
3. remove in order as shown in the table.
4. install in reverse order as of removal.
