HAIMA 7 - Engine Bonnet; Disassembly;Assembly of Engine Bonnet; Adjustment of Engine Bonnet

Engine hood
S-1

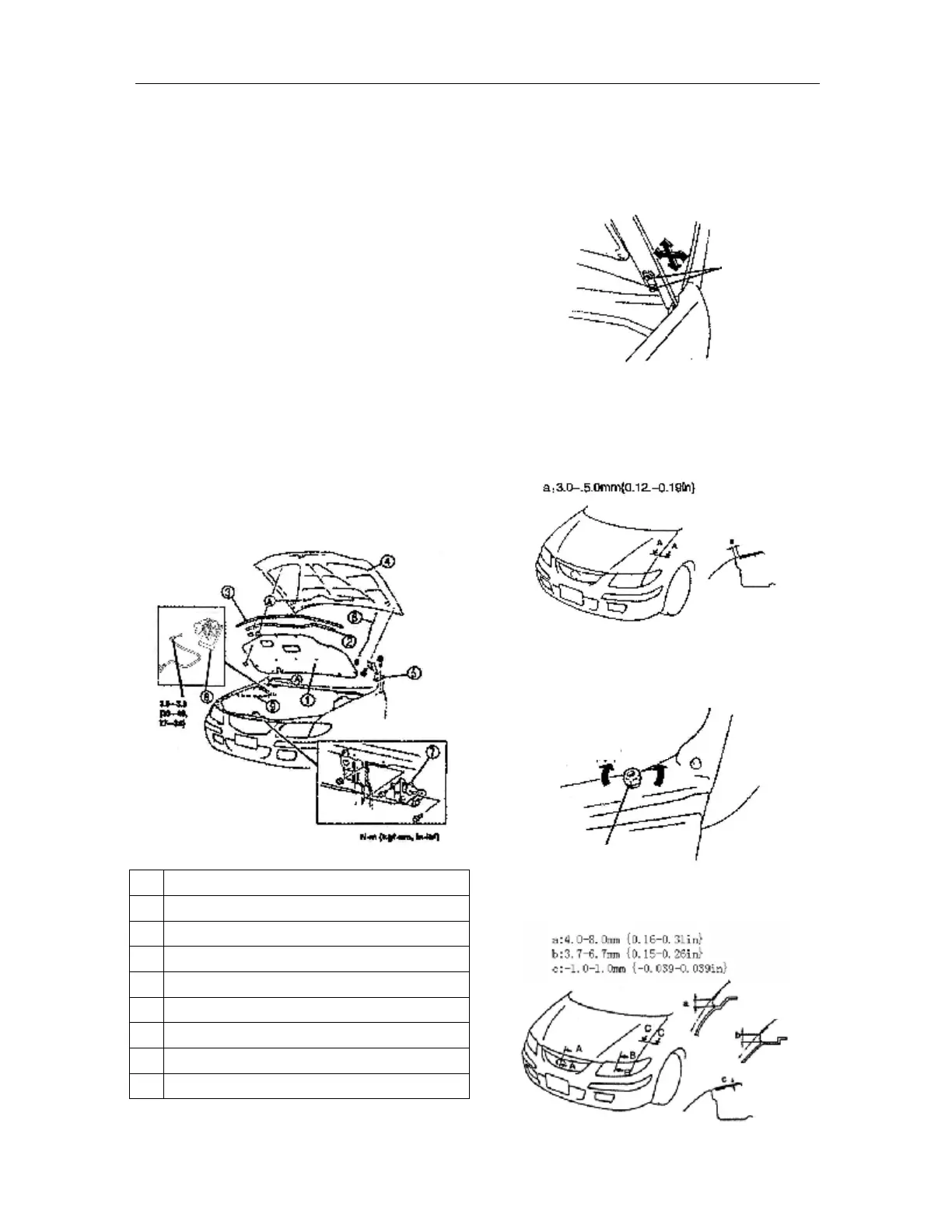

Engine bonnet
Disassembly/assembly of engine bonnet
Caution:
It is dangerous to remove the engine bonnet without
the support, because the engine bonnet may drop
down to hurt you.
When dismounting, two persons at least shall work
together.
1. Remove the windshield washer hose;
2. Prior to remove the engine bonnet hinge, undo
the front fender first;
3. Prior to remove the engine bonnet lock, undo
the radiator grille first;
4. Dismount as indicated in the following Table;
5. The installation is in the reverse order with the
removal;
6. Adjust the engine bonnet after installation.
1 Engine bonnet insulating mat
2 Engine bonnet wind deflector
3 Sealing strip
4 Engine bonnet
5 Engine bonnet hinge
6 Engine bonnet strut bar
7 Engine bonnet lock
8 Engine bonnet pull handle
9 Engine bonnet
Adjustment of engine bonnet
1. Loosen the mounting bolt of engine bonnet,
and readjust the engine bonnet position.
2. Fasten bolts.
3. Confirm that the clearance between the engine
bonnet and bodywork is within the range of
standard.
Height adjustment
1. Rotate the rubber stop pad and adjust the height
of engine bonnet;
2. Confirm that the height of engine bonnet is
within the range of standard.
Bolt
Clearance
Section view
A-A
Downward
Upward
Rubber stop pad
Clearance:
Section view A-A
Section view B-B
Section view C-C
