Window glass
S-36
Attention:

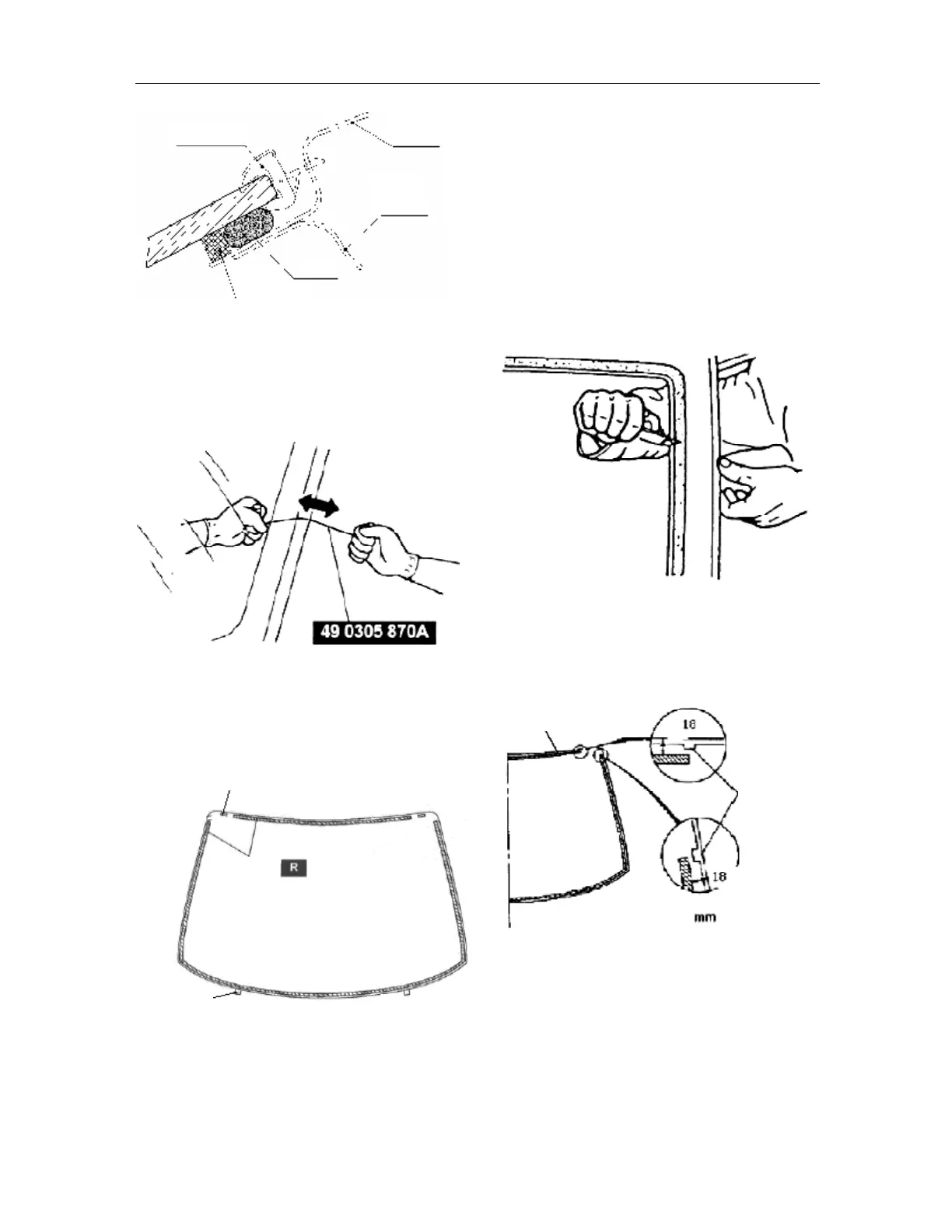

● When cutting sealant with a piano string, a
complete piece of string shall be used to
prevent breakage.
3. Working with another person, cut sealant along
the edge of glass.
4. Remove the windshield;
5. Remove the damping strip;
6. Remove the fixer;
7. Remove the pad A.
Mounting of windshield
Warning:
● In use of a scraper, wear gloves to prevent
hand injury.
Caution:
● To prevent the sealant scratch, or glass
pushed out when the doors closed, all
windows shall be opened, until the sealant
hardened.
1. Cut old sealant on the windshield frame by use
of blade and save a layer in thickness of ca
1—2mm. If completely removing the sealant
on some part, a layer of primer shall be
smeared after the grease removed, and let it
dried for 30min, and then smear again new
sealant to form a layer in thickness of 2mm.
2. Clean the marginal band in width of 50.0mm
along the connection between the front
windshield and bodywork.
3. Stick a damping strip along 12.0mm away
from the upper edge of front windshield.
4. Place the pad A into the hole;
5. Install the front windshield, adjust the
clearance between the glass and bodywork
6. Mark on the glass above V-groove ;
7. Be sure that the clearance of both upper and
side edges of glass is 5mm.
molding
Roof cover
beam
Sealant
Fixer
strip
Pad A
Damping strip
Ceramic
demarcation
line
