HAIMA 7 - Bumper; Disassembly;Assembly of Front Bumper

Bumper
S-22
Bumper

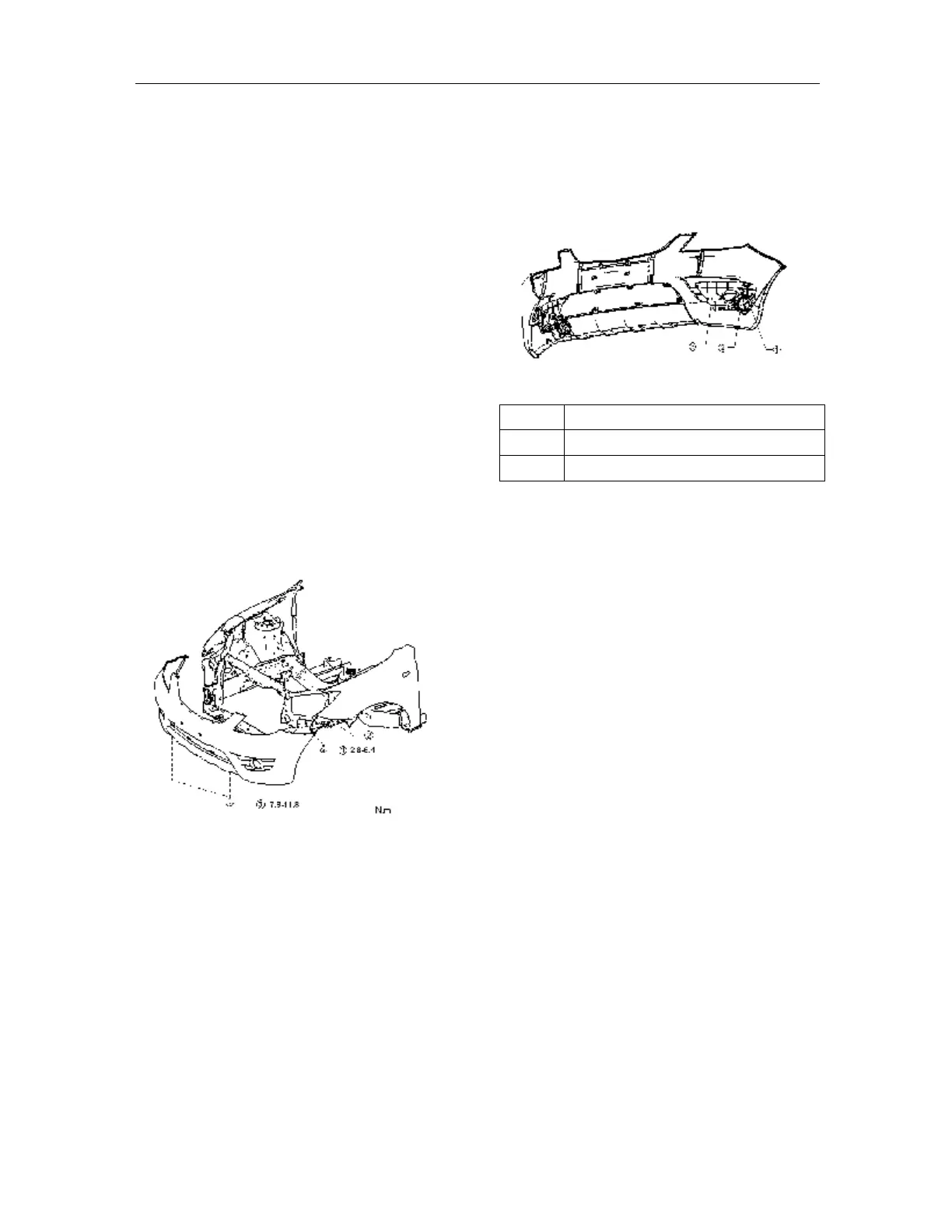

Disassembly/assembly of front bumper
1. Disconnect the negative cable of battery;
2. Dismount the front wheel mudguard (See
Part T——Disassembly/Assembly of Front
Wheel Mudguard)
3. Dismount the self-tapping screws ①;
4. Withdraw the claw of front bumper holder
②;
5. Dismount the plough bolt ③;
6. Disconnect the connection of front fog lamp
plug;
7. Dismount the front grille (See Part
T——Disassembly/Assembly of Front
Grille)
8. Install as per the reverse order with that of
removal.
9. Adjust the light direction of front fog lamp
(See Part T——External Lighting System,
Light Direction of Front Fog Lamp)
Disassembly/assembly of front bumper
1. Disassembly as per the reverse order as
indicated in the table below;
2. Assembly in the reverse order with that of
disassembly;
1 Front fog lamp harness
2 Front fog lamp
3 Fog lamp cover
