Power supply system
T-4
Lighting and signal system
Headlamp

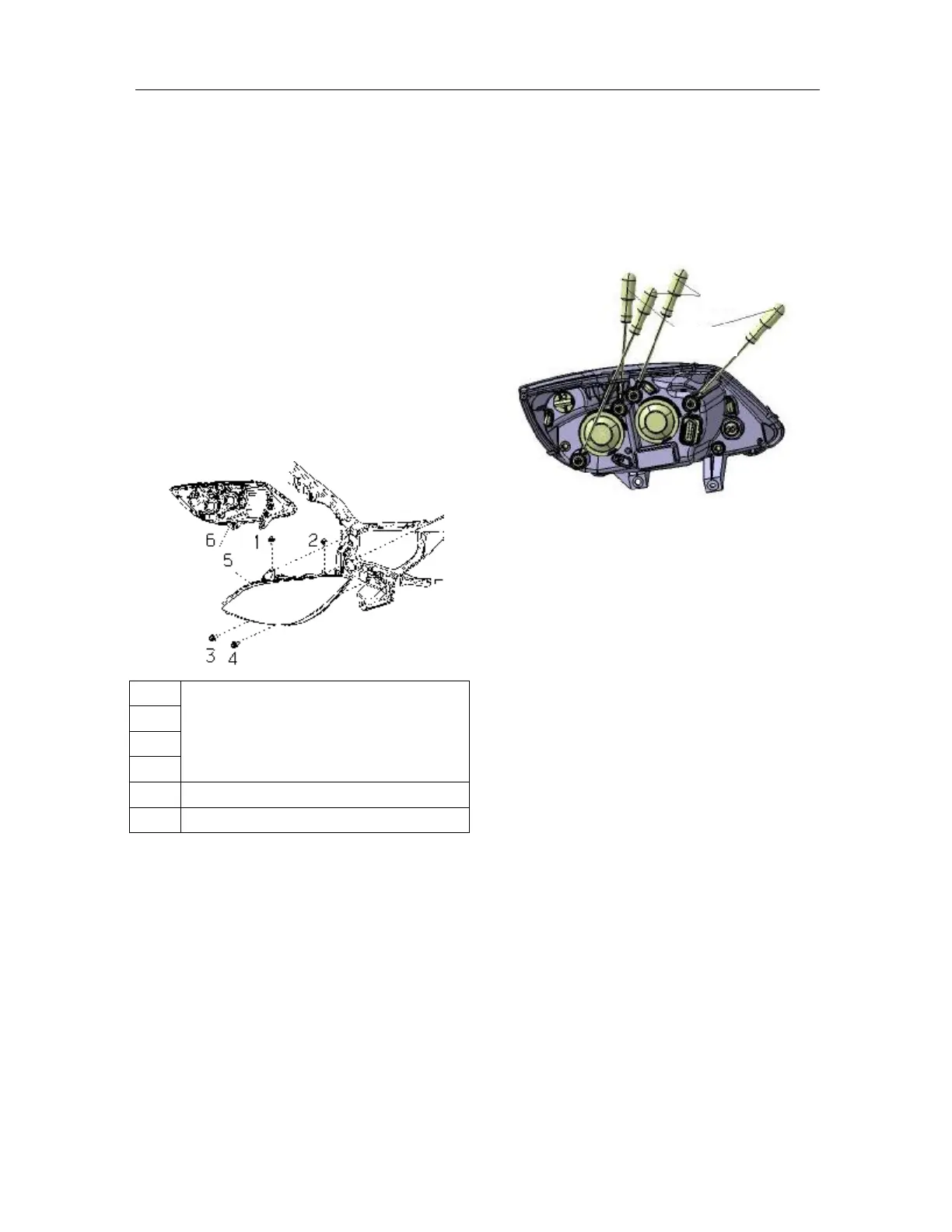

Removal/installation of headlamp
1. Remove the negative cable of battery;
2. Remove the front bumper;
3. Remove the fixing snaps 1, 2, 3 and 4 and
bolts.
4. Take out the fixture on a suitable place, and
then withdraw manually the plugs 6, 7 and 8
5. The installation procedure is in reverse order
with that of the removal (Note that the
installation procedure is in order of 1, 2, 3 and
4).
6. Adjust the focusing of headlamp (See the
Focusing of Headlamp)
1
Bolt HQ9GG60-0616B
(tightening torque: 7.2～12N·m)
2
3
4
5 Headlamp
6 Headlamp plug
Note: In removing the headlamp, note to first pry up
the clamp on the screw no.2 and avoid breaking up
the clamp while removing it.
Light regulation of headlamp
1. Adjust the tire pressure up to the specified
value.
2. Park a no load vehicle on a level road;
3. Have a person sit down on the driver seat;
4. Park the vehicle perpendicular to the wall;
5. Set the headlamp at 3 m {10 ft} away from the
wall;
6. When adjusting a headlamp, remove the
connector of the other one.
7. Start the engine to charge the battery.
8. As shown in Fig., turn the screw to adjust the
headlamp.
Removal/installation of headlamp bulb
Attention: When used, the halogen bulb will
produce large amount of heat. If the lamp surface is
too dirty, the heat will continue to accumulate and
result in shortening the service life of lamp. Hold
the metal flange instead of glass when replacing the
lamp.
Removal/installation of high/low beam bulbs:
1. Remove the negative cable of battery;
2. Turn on the rear waterproof cover of high or
low-beam, remove the connectors of low-beam
and high-beam; Detach the bulb hold-down
spring and take out the bulb (See Fig. below)
3. The installation procedure is in reverse order
with that of the removal.
Removal and installation of front turn signal lamp
and front position lamp bulbs:
1. Remove the negative cable of battery;
2. Rotate counterclockwise the lamp holder and
take out the bulb.
3. The installation procedure is in reverse order
with that of the removal.
adjustment
adjustment
