Rear doors
S-16
Check of the lifting function of power
window
Attention
l In the check, do not extend your body e.g.
your hand into the window. Be cautious not
to be clamped by glass.
Instruction:
l The anti-trap function of PW is only applicable
to the driver-side front doors
l The automatic anti-trap function is only
effective when the window is closed.
1. Open completely the door glass;

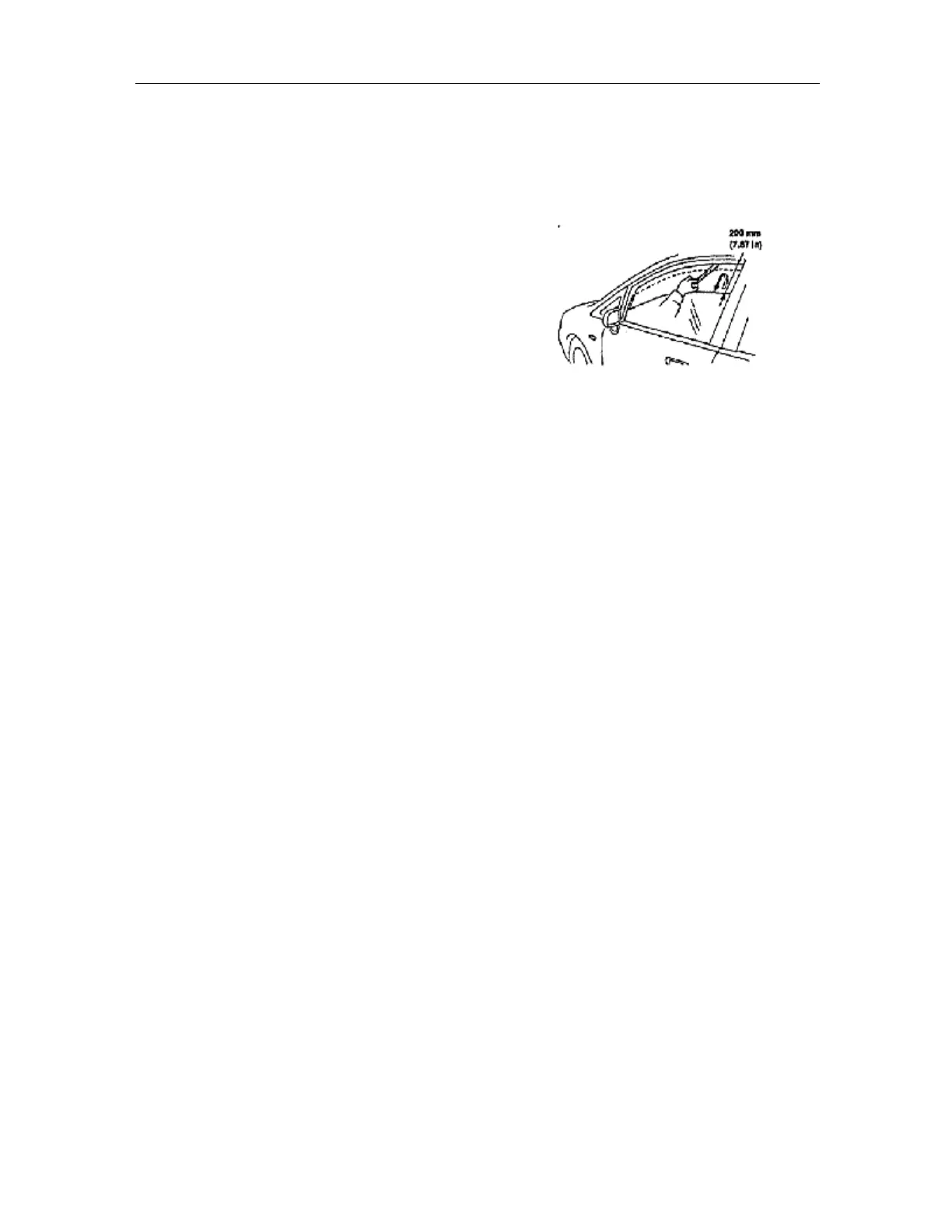

2. Put the hammer handle in the position as
shown in Fig.
3. Close the window;
4. Confirm that the glass moves downward with
ca 200mm opening left, once in contact with
the hammer handle. If any abnormal, check the
faults.
