Cylinder block and crank connecting rod mechanisms
69
Cylinder block and crank connecting rod mechanisms
Break down/installation of cylinder block and crank connecting rod mechanisms
1. Remove the cylinder head (See——Cylinder Head), Oil Pan Body, Oil Pump
(See——Lubrication System), Crankshaft Rear Cover (See——Flywheel and Clutch).

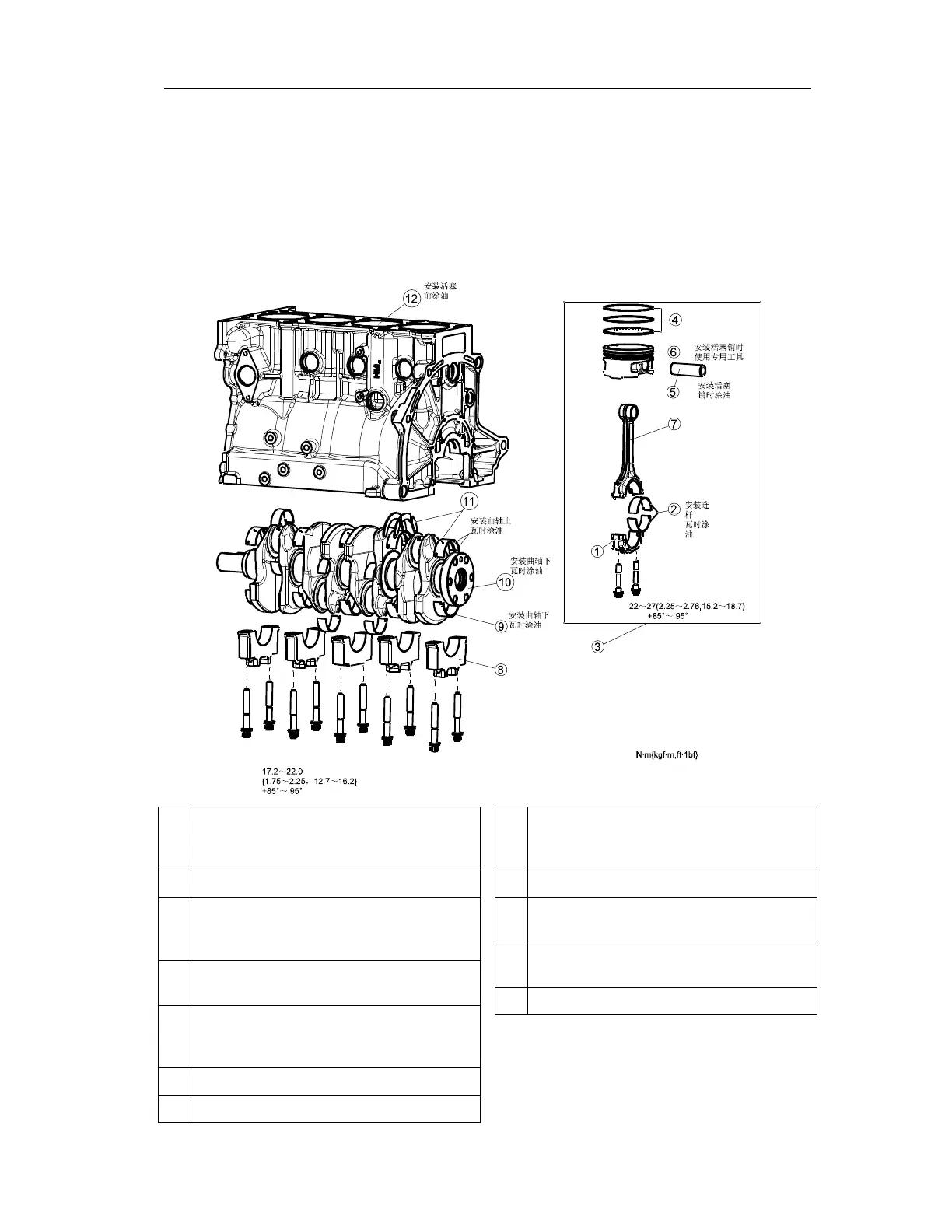

2. Disassemble as per the order shown in Fig.
3. Assemble as per the reversing order of disassembly.
1
Connecting rod cap
(See——Removal/Installation
Instructions)
2
Connecting rod bearing
3
piston connecting rod
assembly(See——Removal/Installation
Instructions)
4
Piston ring (See——Installation
Instructions)
5
Piston pin
(See——Removal/Installation
Instructions)
6
Piston
7
Connecting rod
8
Main bearing
cap(See——Removal/Installation
Instructions)
9
Lower bearing of crankshaft
10
Crankshaft ( See——Disassembly
instructions)
11
Upper bearing of crankshaft and thrust
bearing
12
Cylinder block
