Inner trim panel
S-47
Disassembly/assembly of inner pedal of
front doorsill
1. Loosen the snap A from the bodywork
2. Pull upward to remove the pedal.
3. Install as per the reverse order with that of
removal.
Disassembly/assembly of outer pedal of
front doorsill
1. Pull the outer pedal of front doorsill and take it
out from the bodywork;
2. Stick new tape on the appropriate position of
pedal and install it on the bodywork;
Disassembly/assembly of inner pedal of
rear doorsill
1. Loosen the snaps A and B from the bodywork;
2. Pull upward to remove the pedal;
3. Install as per the reverse order with that of
removal.
Disassembly/assembly of outer pedal of
rear doorsill
1. Pull the outer pedal of rear doorsill from one
end to remove it from the bodywork.
2. Stick new tape on the appropriate position of
pedal and install it on the bodywork.
Disassembly/assembly of trim panel of
column C
1. Remove the side trim panel of trunk
(See——Disassembly/Assembly of Trim Panel
of Trunk);
2. Remove the safety belt fixer on the rear row
(See——Disassembly/Assembly of Safety Belt)
3. Turn over the sealing strip.
4. Use the removal tool of fastening screw to
loosen the snaps A and B; and then C, D and E;

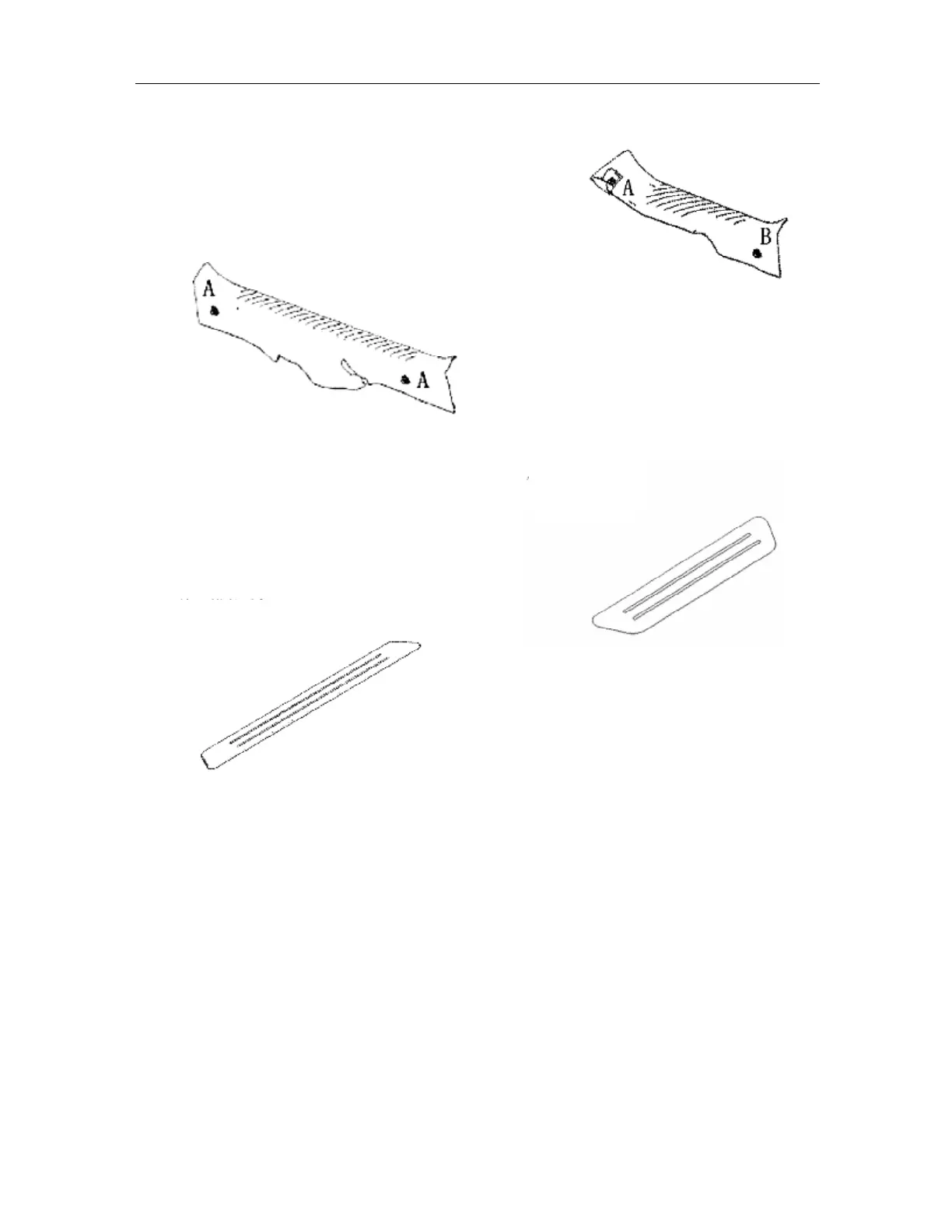

Pedal of front door
doorsill
Pedal of rear door
doorsill
