3. The installation procedure is in reverse order
with that of removal.
Precautions to installation:
Install firstly the barb 1 on the ignition lock, and
then the barb 2 on the ignition lock.
Check of anti-theft coil
1. Sometimes the engine cannot be started by
normal starting method. The problem persists
after the faults of controller and ECU
troubleshot, which means there are still
problems in the anti-theft coil.
2. Check whether the harness connecting the
anti-theft coil and controller is in sound
condition.
3. Test with the diagnostic apparatus, the
anti-theft system. If the communication is
disabled due to the faults of transmitter and
anti-theft controller, it means there is a fault in
the anti-theft coil.
4. Remove the anti-theft coil, and use a
multimeter to check the connectivity of two
PINs as follows.
Connector at harness side
Note: When checking, connect the PIN A with the
PIN C.
5. If failed to get through, it means that the
anti-theft coil is damaged. Replace the
anti-theft coil.

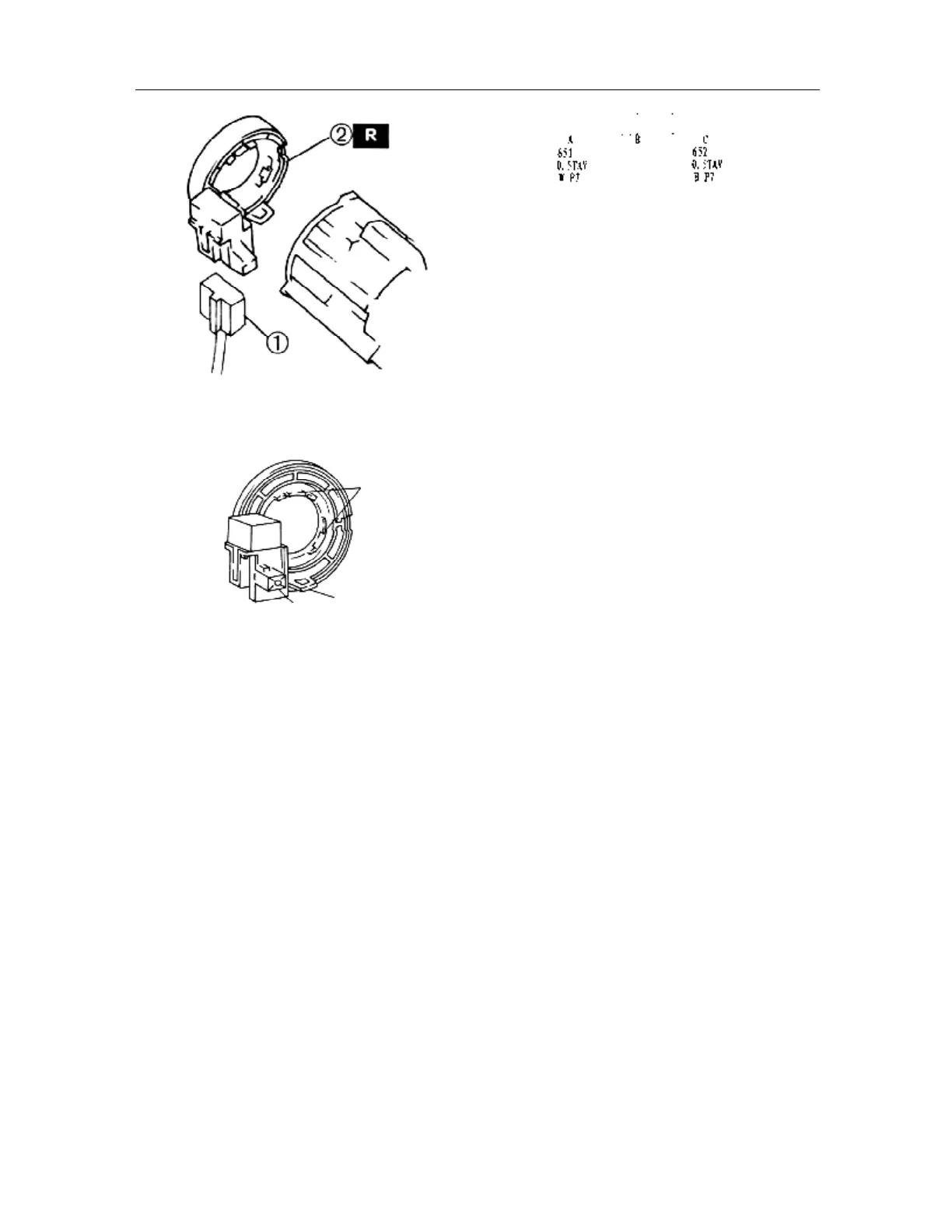

Barb 3
Barb 2
Barb 1
