General Precautions of EFI System Maintenance
F-92
Malfunction Diagnostic Guide:
Required Equipment: (Diagnostic Instrument with EOBD Diagnostic Function, Digital Multimeter, and
Correct Circuit Diagram)
Step I: Use diagnostic instrument to read the malfunction information
Read Result I Read Result II
MI lamp On P-CODE Present MI lamp off P-CODE Present
P2128 P2128
Maintenance tips:
The malfunction has been confirmed, and the
following problems may possibly exist
1) Short circuit between Pin 40# of ECU and Pin
32#;
2) Circuit connected to Pin 40# of ECU shorted
to other power supply.
Maintenance tips:
The malfunction is not ultimately confirmed and it may
possibly be a random malfunction. Inspect the following
items:
1) Measure resistance between Pin 40# of ECU and Pin
32#;
2) Measure resistance between Pin 40# of ECU and other
power supply.
122. P2138 Electronic Throttle Pedal Position Sensor Signal Irrational
Description about Malfunction Cause:
After the start of engine, relevant control module inside ECU performs monitoring over circuit voltage of
electronic throttle pedal position sensor 1/2. When the voltage is beyond the rational voltage range preset, it is
determined to be irrational voltage signal malfunction.

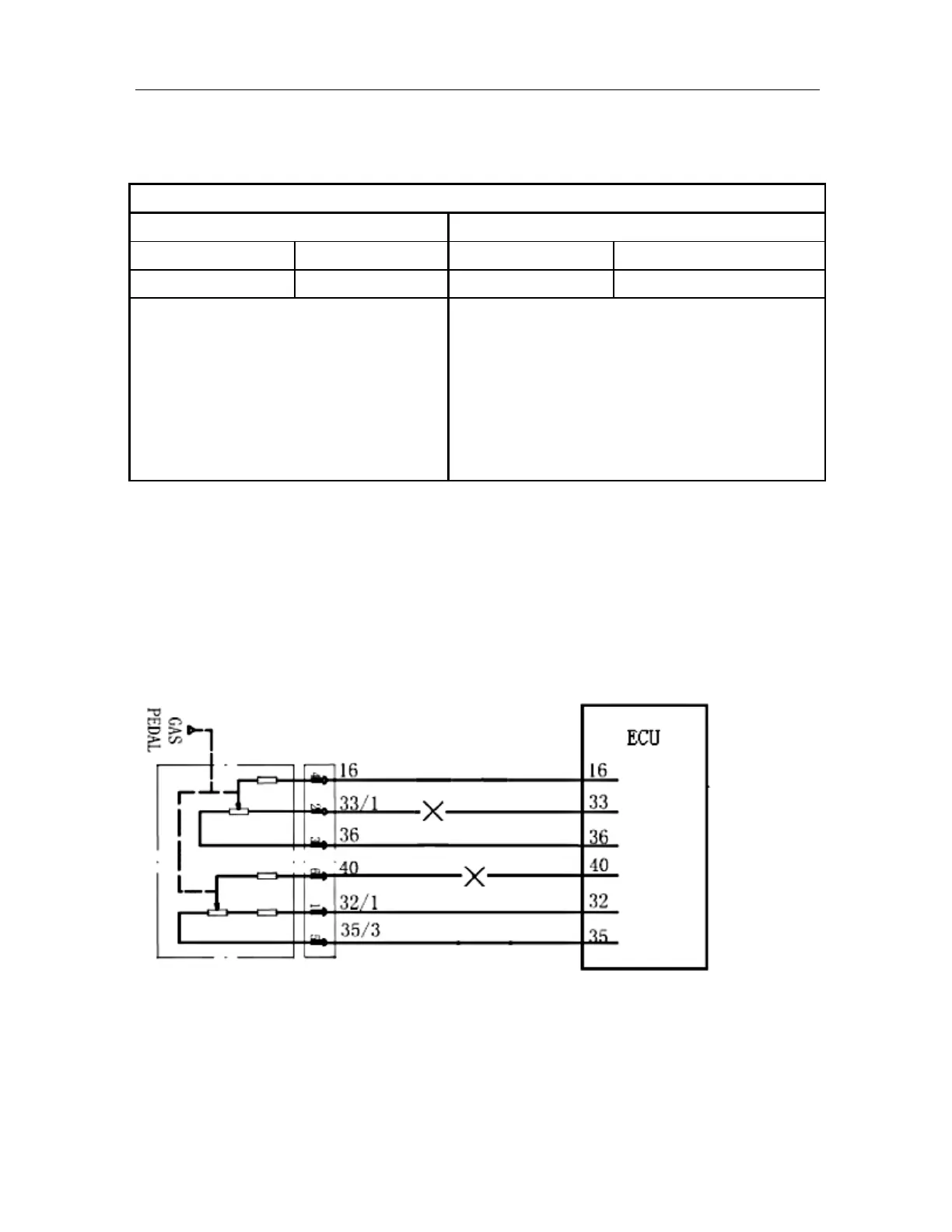

Schematic Circuit:
Malfunction Diagnostic Guide:
Required Equipment: (Diagnostic Instrument with EOBD Diagnostic Function, Digital Multimeter, and
Correct Circuit Diagram)
To Next Page
