HAIMA 7 - Page 360

Anti-lock brake system (ABS control unit)
P-30

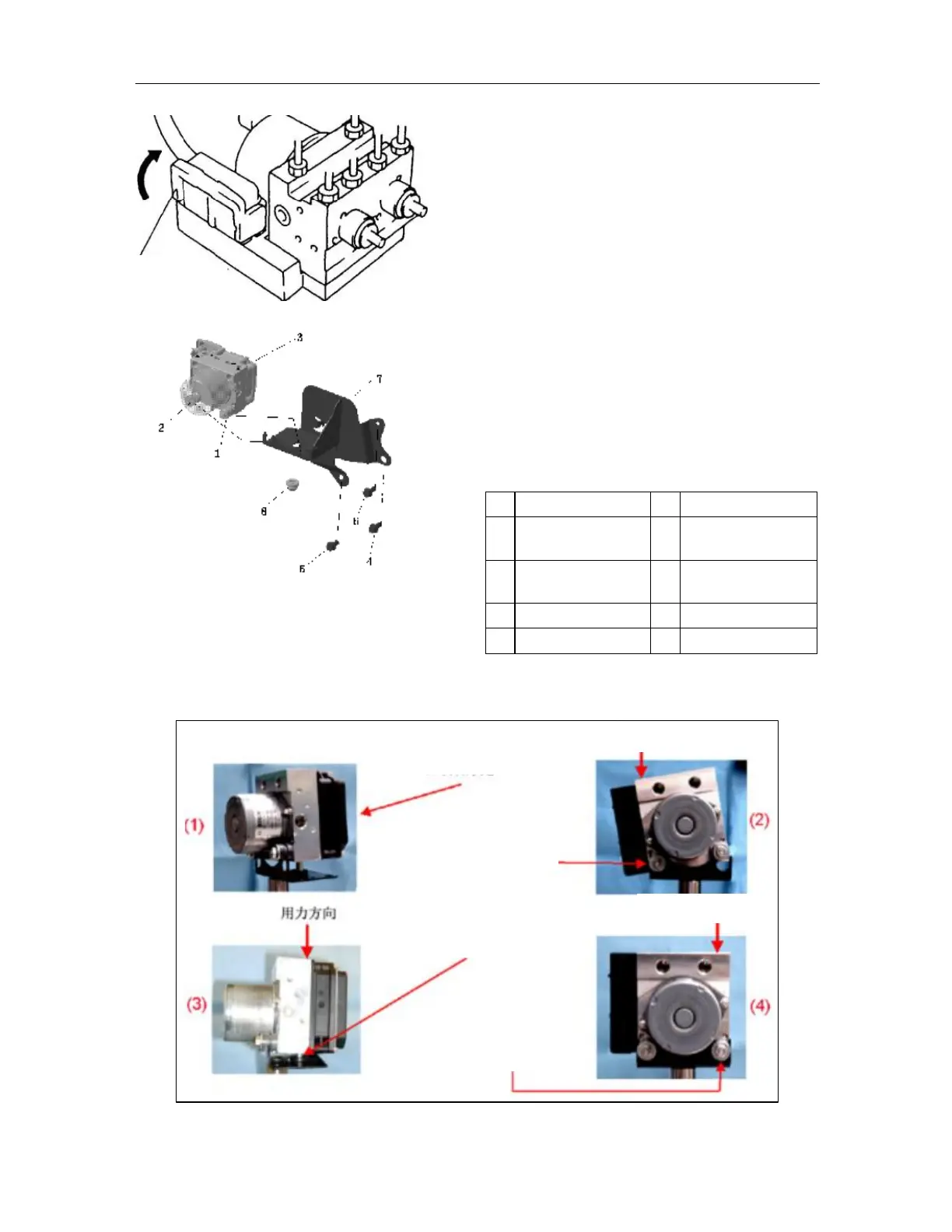

Removal of plug
l Confirm that the locking rod of plug is
completely tightened;
l Pull up completely the locking rod at the
removal time;
l Pull out the ABS electric connector.
Removal and installation of ABS control
unit holder
1. Removal and installation bolt.
2. Remove the ABS control unit holder.
3. Remove the ABS control unit.
4. The installation process is in the reversing order
of removal process.
1 Nut 6 Locking bolt
2 Nut 7
ABS control unit
holder
3
ABS control unit
modular
8 Buffer cushion
4 Locking bolt
5 Locking bolt
Removal and installation of HU/CM of ABS control unit
Thrust bar
Direction where the
force is app
lied
Direction where the
force is applied
1. Initial state
2. Fit up the left buffer
element (facing the engine)
3. Insert the central pin
4. Install the nut
