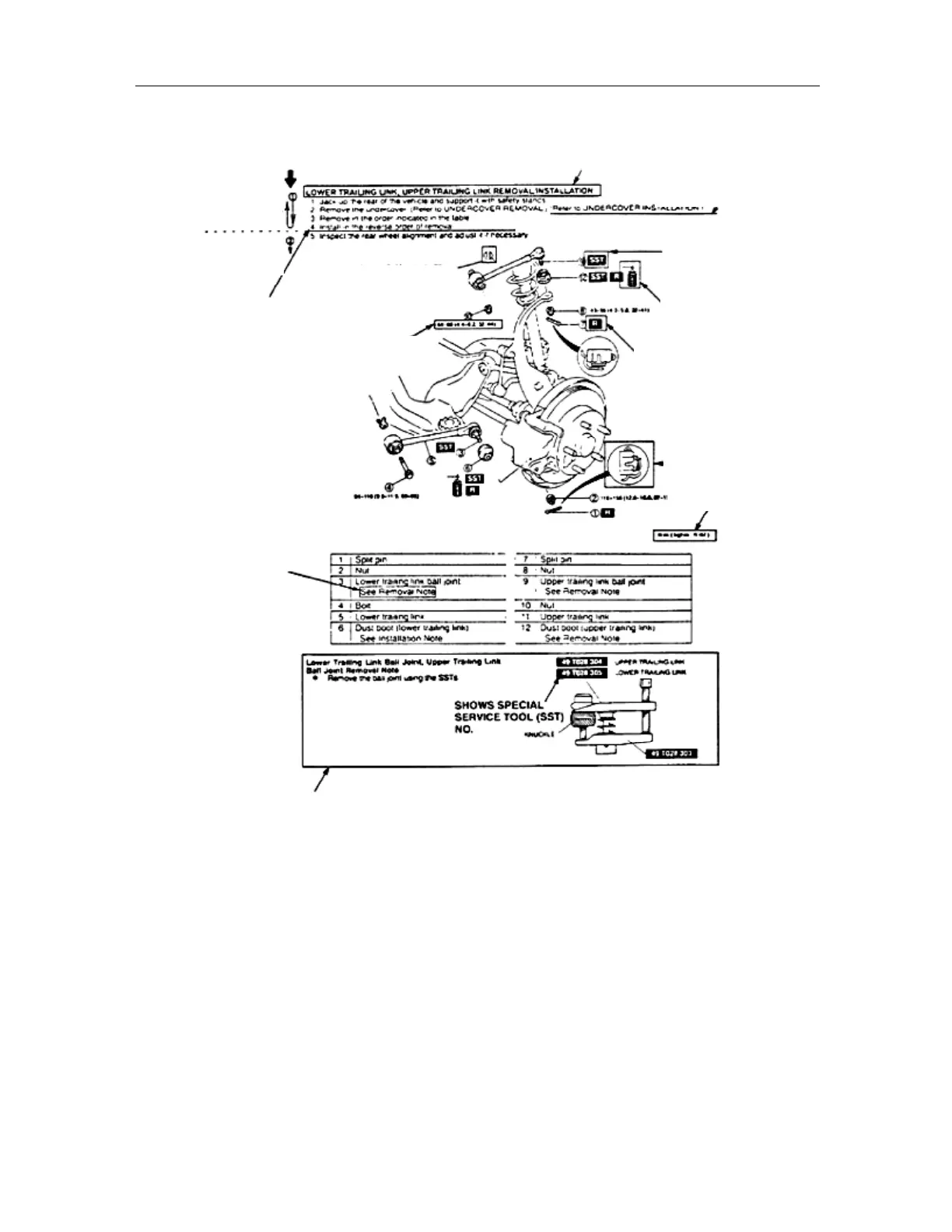

How to use this manual
GI-2
Process
Maintenance item
S
pec
ial tools
necessary during the
maintenance
Position where the
lubricant shall be
applied
Portions to be
removed/installed
Portions to be checked
after installation
Maintenance steps
Relevant references
necessary during the
installation
Install in the reversing
order of steps 1-3
Tightening torque
Wearing parts
Magnification
description
Torque unit
Refer to the
repair items
Refer to the repair items
