5.4 Segment Sweep
173
5
Chapter 5 ANALYZER Function
Setting the measurement frequency.
(When the setting is , , or )
The measurement frequency that can be set varies depending on the set sweep point
range.
Example: When the sweep parameter is set to open circuit voltage level, the settable range
of frequencies is 4.00 Hz to 1.0000 MHz if there is a sweep point of 1 V or above.
For details, refer to "4.2.1 Setting the Measurement frequency" (p. 41) and "4.2.2 Setting
the Measurement signal level" (p. 43) of the LCR function.
Setting the measurement range.

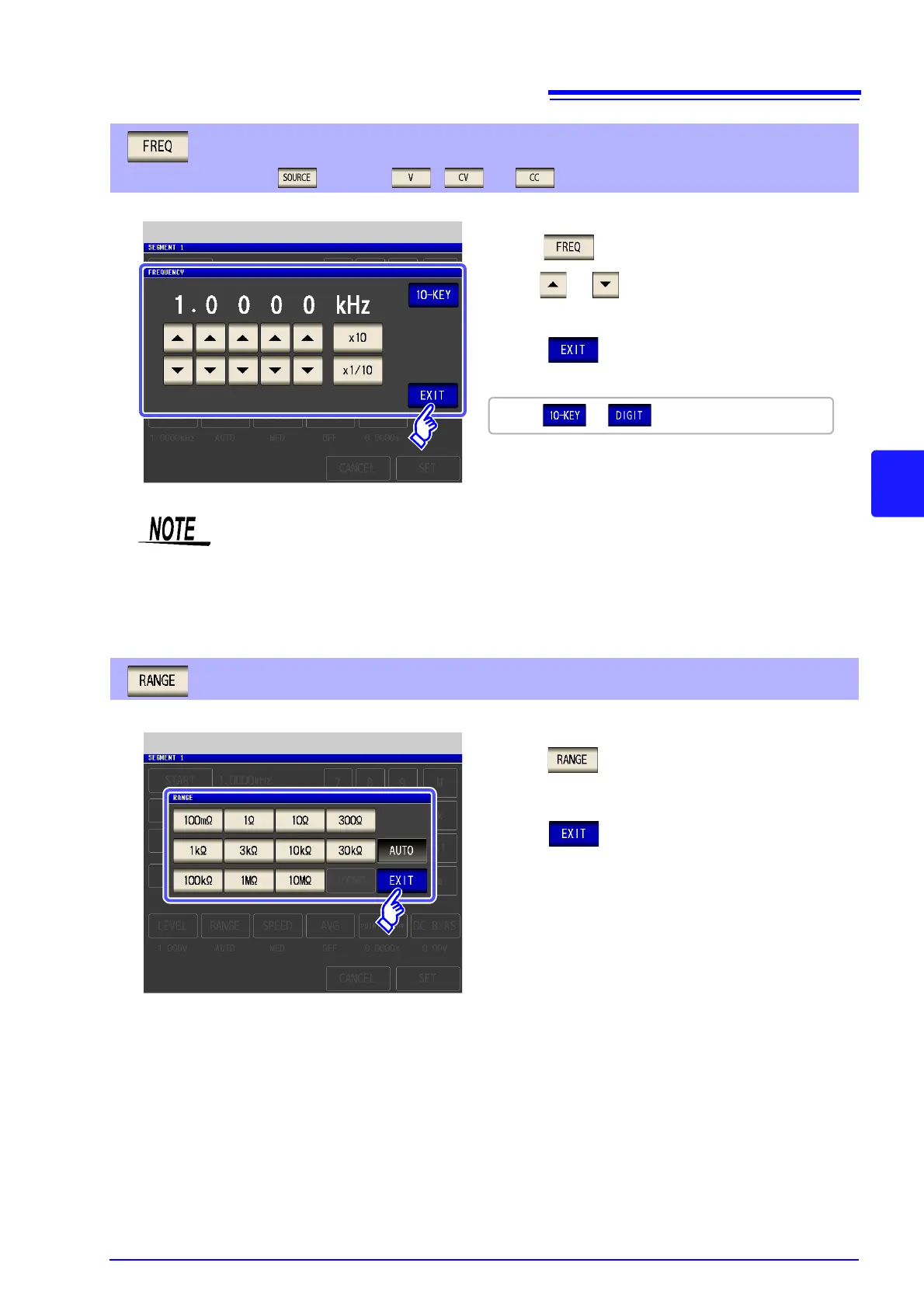

Measurement Frequency Setting
2. Use or to set the frequency.
Settable range: 4.00 Hz to 5.0000 MHz
3. Press to close the setting screen.
1. Press .
Press or to change the input method.
2. Select the measurement range.
3. Press to close the setting screen.
See "5.3.3 Setting the Measurement Range" (p. 160)
Measurement Range Setting
1. Press .
