5.7 Judging Measurement Results (Comparator Function)
201
5
Chapter 5 ANALYZER Function
When the setting is
Upper/Lower Limit Value Settings
Set the judgment area.
Sets the upper and lower limit values
based on the current measurement
values.
Sets the reference value, upper limit
value, and lower limit value.
Sets the upper and lower limit values
as percentage values relative to the
reference value.
Sets the upper and lower limit values
as absolute values relative to the refer-
ence value.
When you want to cancel the setting:
Press .

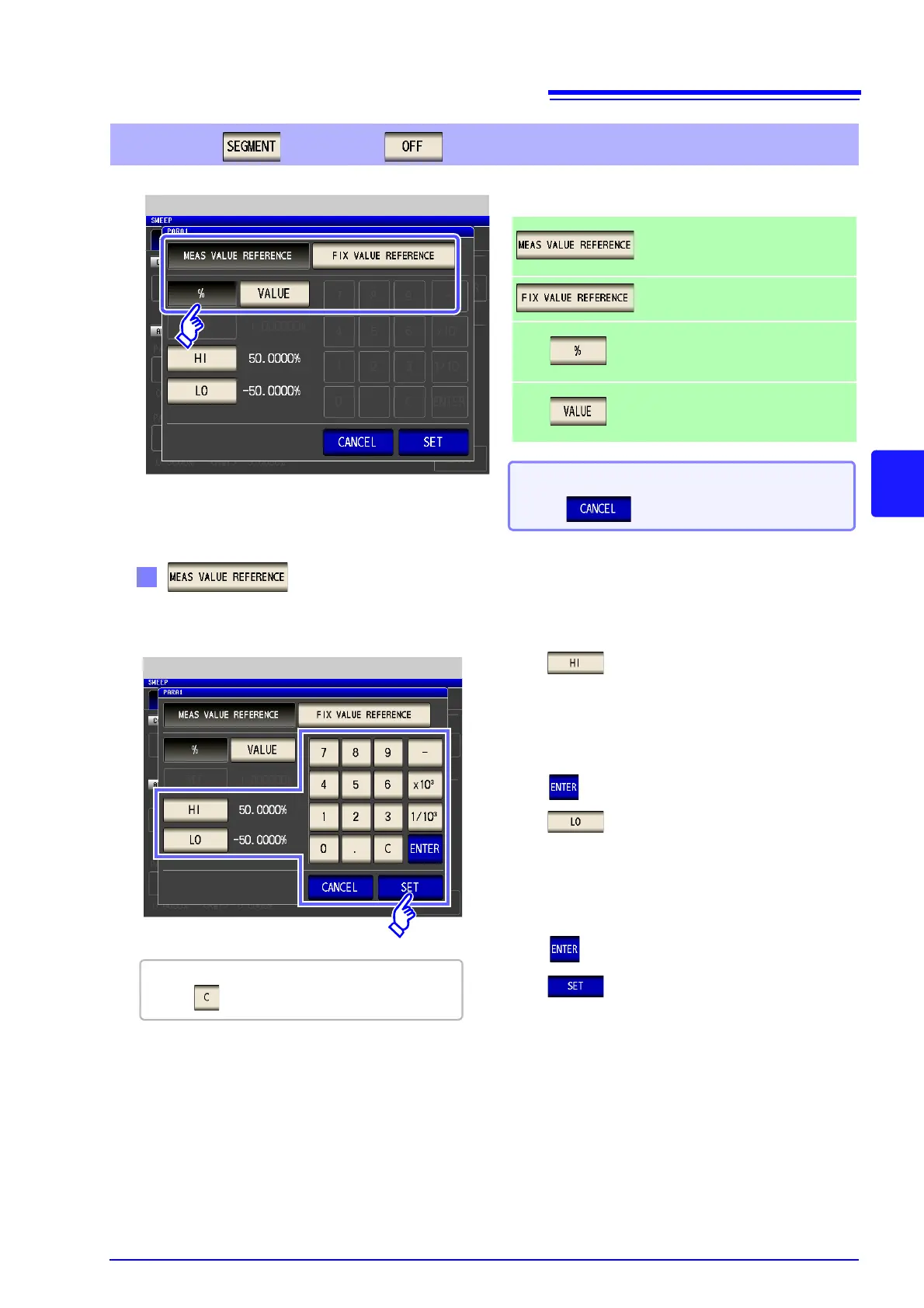

Set the upper and lower limit values based on the current
measurement values.
If you make a mistake during input:
press to cancel the input and start again.
1. Press and use the numeric keypad to set the
upper limit value.
• Settable range: -999.9999 to 999.9999
(Set as a % value)
• Settable range: -9.999999G to 9.999999G
(Set as a reference value)
2. Press to confirm the upper limit value.
3. Press and use the numeric keypad to set the
lower limit value.
• Settable range: -999.9999 to 999.9999
(Set as a % value)
• Settable range: -9.999999G to 9.999999G
(Set as a reference value)
4. Press to confirm the lower limit value.
5. Press to confirm the setting.
Upper/Lower Limit Value Settings
