2 MEASurement Commands
128 N1911A/1912A P-Series Power Meters Programming Guide
CONFigure[1]|2|3|4[:SCALar][:POWer:AC]:RATio
[<expected_value>[,<resolution>[,<source list>]]]
This command sets the measurement function, range and resolution of the
specified window. It sets the measurement function to ratio with relative mode off.

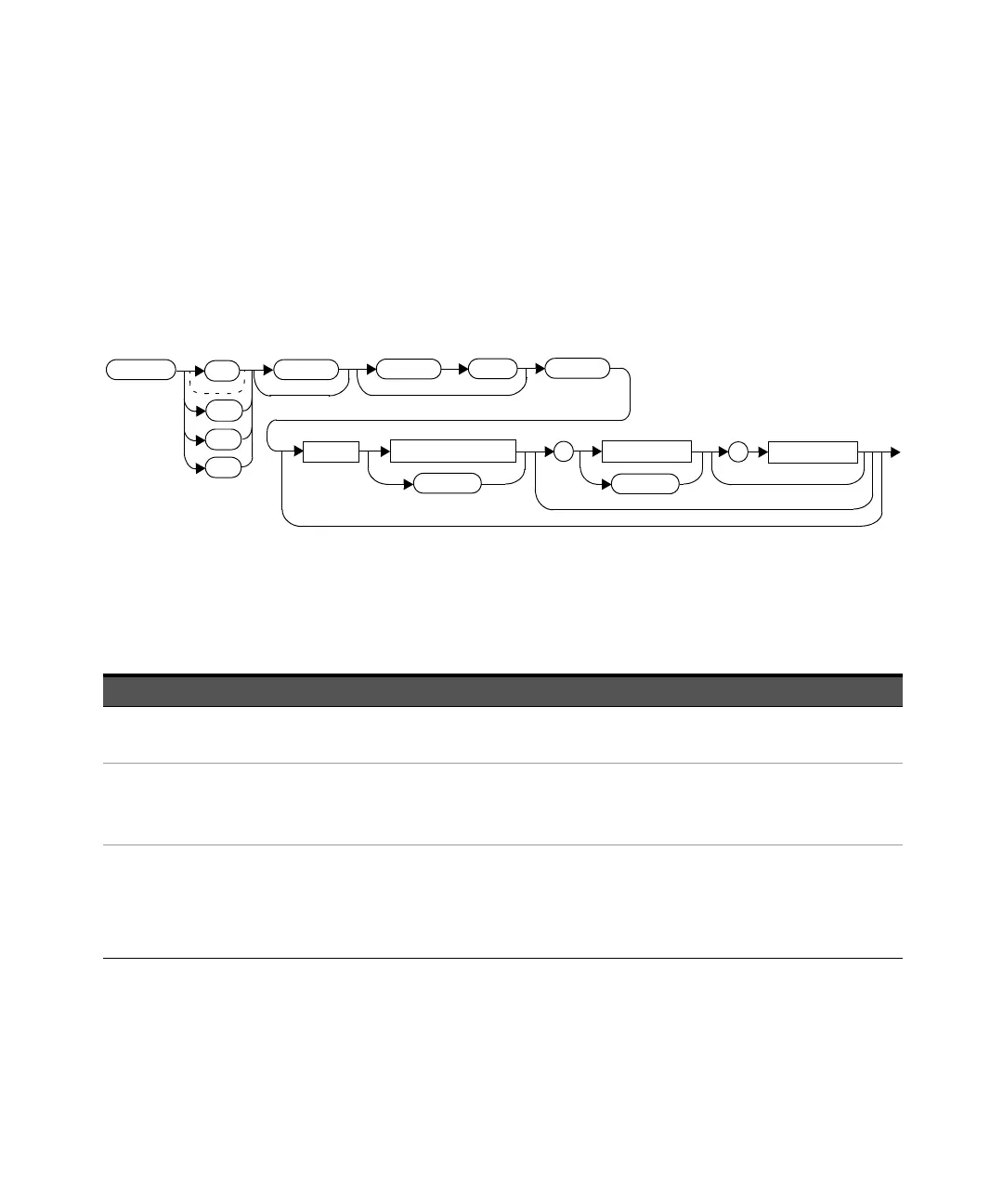

Syntax
Parameters
Refer to “Optional Parameters” on page 112 for additional details on the
parameters in this command.
[a] The mnemonic DEF means DEFault. This is not equivalent to the DEFault parameter used in the command sub-systems. The parameters must
be entered in the specified order. If parameters are omitted, they default from the right. The parameter DEFault is used as a place holder.
Specifying DEF leaves the parameter value unchanged.
:POW
:AC
:SCAL
:RAT
Space
expected_value
DEF
resolution
,
DEF
source list
,
CONF
1
2
3
4
Item Description/Default Range of Values
expected_value
(for the expected power level)
The power meter ignores the numeric value entered in this
parameter. Any value entered is treated like DEF.
sensor dependent
DEF
[a]
resolution A numeric value for the resolution. If unspecified the
current resolution setting is used.
1 to 4
[b]
1.0, 0.1, 0.01, 0.001
DEF
[a]
source list This channel list specifies the channels used to
calculate the ratio. If unspecified and the current
window setup is a ratio measurement then this ratio
setup is used, otherwise it defaults to Channel A/B
(N1912A) or A/A (N1911A).
(@1),(@2)
[c]
(@2),(@1)
[c]
(@1),(@1)
(@2),(@2)
[c]
