Keysight N1911A

CALCulate Subsystem 3
N1911A/1912A P-Series Power Meters Programming Guide 177

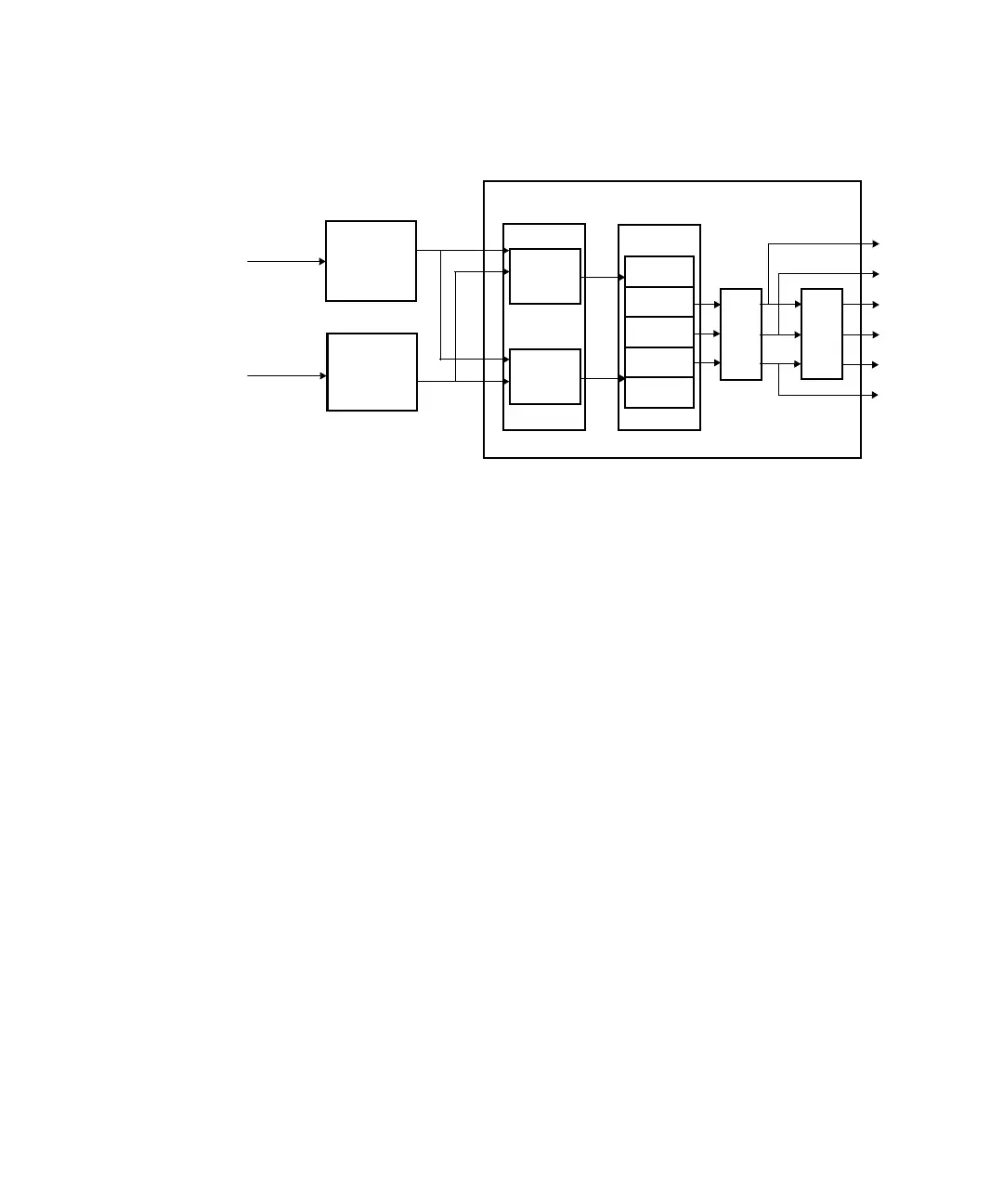

Figure 3-2 CALCulate Block
“A” | “B”
“A-A” | “A/A”
:MATH
:GAIN
:REL
CALCulate Block
SENSe1:
Input from
SENSe1
block
SENSe2:
Input from
SENSe2
block
FEED1
FEED2
:FEED
“B-B” | “B/B”
“A-B” | “A/B”
“B-A” | “B/A”
(N1912A only)
A
B
Peak or Avg
Peak or Avg
