5 DISPlay Subsystem
240 N1911A/1912A P-Series Power Meters Programming Guide

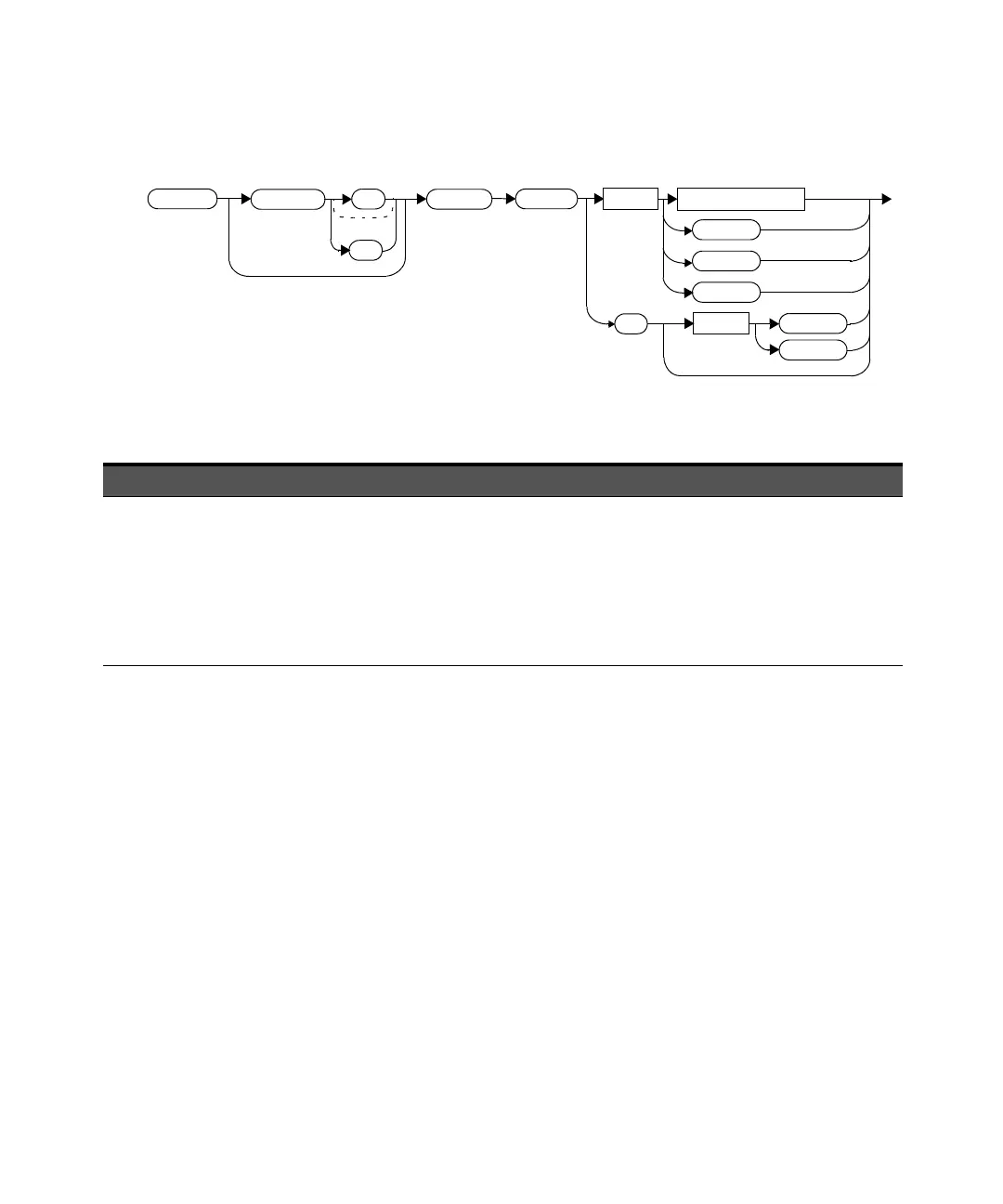

Syntax
Parameters
Example
Item Description/Default Range of Values
numeric_value A numeric value for the analog meter upper scale limit:
– DEF: the default is 20 dBm
– MIN: –150 dBm
– MAX: 230 dBm
Units used are determined by the current setting of
UNIT:POWer and CALCulate:RELative:STATe as
shown in Table 5-2.
–150 to 230 dBm
DEF
MIN
MAX
DISP:WIND2:ANAL:UPP 50 This command sets the lower window’s
analog meter upper scale limit to 50 dBm.
:ANAL
Space
?
numeric_value
DEF
MIN
MAX
MIN
MAX
Space
:UPP
:WIND
1
2
DISP
