Operation
259
Pos: 55.168.35 /BA/Bedi enung /Rundballenpr esse/Ballenwic kler/Folienrollenf ührung @ 75\mod_130926 9009295_78.docx @ 66146 0 @ @ 1
CP400009_1
1
3
2
2
7
5
4
6
3
CP400010_1
1

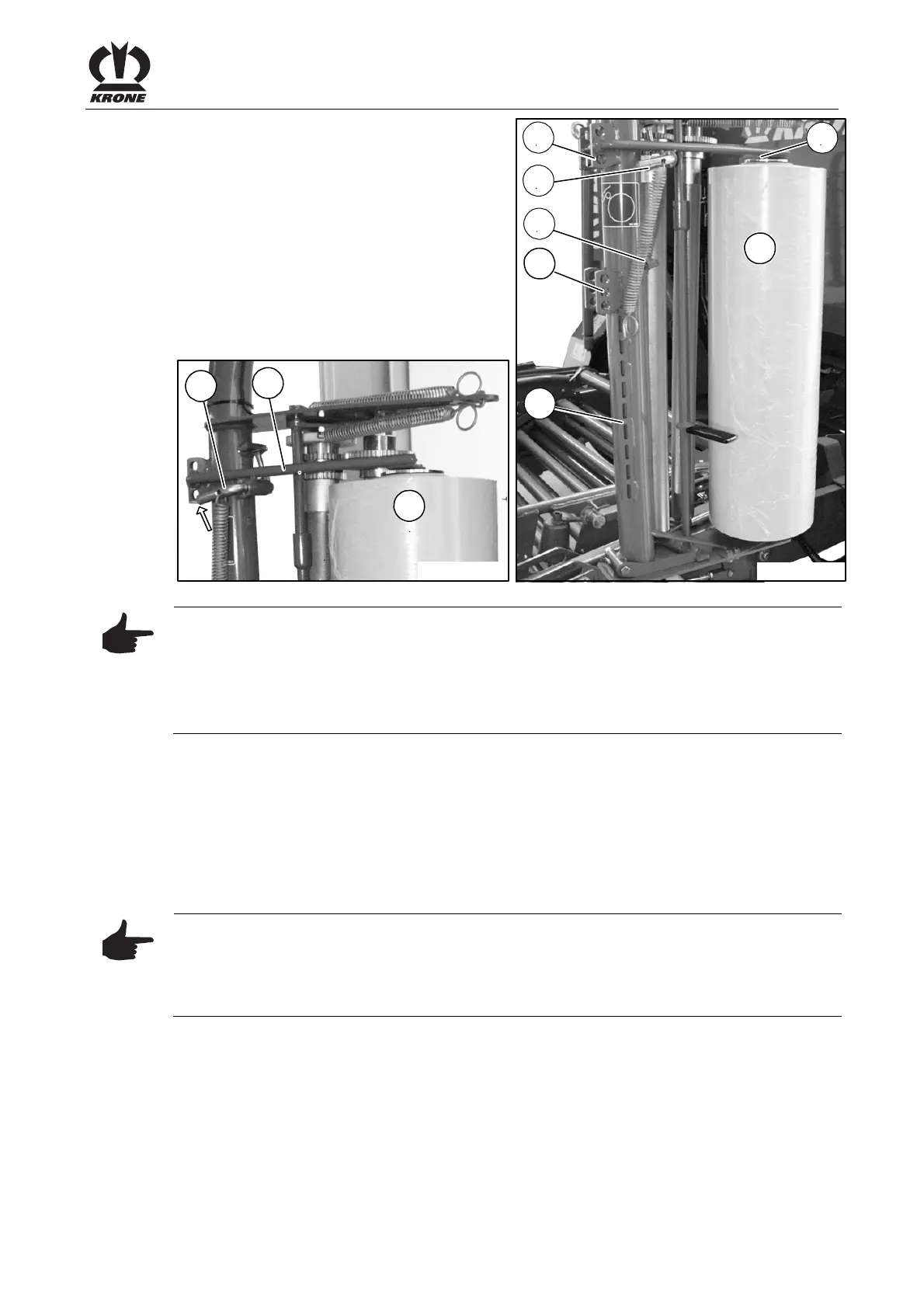

Fig. 199
Note
The sheet roll guide (1) must always run parallel to the upper end of the sheet roll (2).
Therefore the roll guide (1) must be assembled on different perforated bars depending on the
size of the roll:
• Use the perforated bar (6) for small rolls
• Use the perforated bar (4) for big rolls
• When using a different size of the rolls than before, assemble the roll guide (1) onto the
accordant perforated bar (refer to note above)
• Unlock the sheet roll guide (1) by activating the bolt (3) and fold it upwards.
• Insert the sheet roll (2) into the lower holder
• Insert the roll guide (1) in the sheet roll (2) by activating the bolt (3)
• Hook the tension spring (5) into the perforated bar (7) in a way that the locking screw (8) is
pressed against the flat iron (9)
Note
• When using a big sheet roll (750 mm) hook the tension spring (5) into the upper area of the
perforated bar (7)
• When using a small sheet roll hook the tension spring (5) into the lower area of the
perforated bar (7)
