3
R

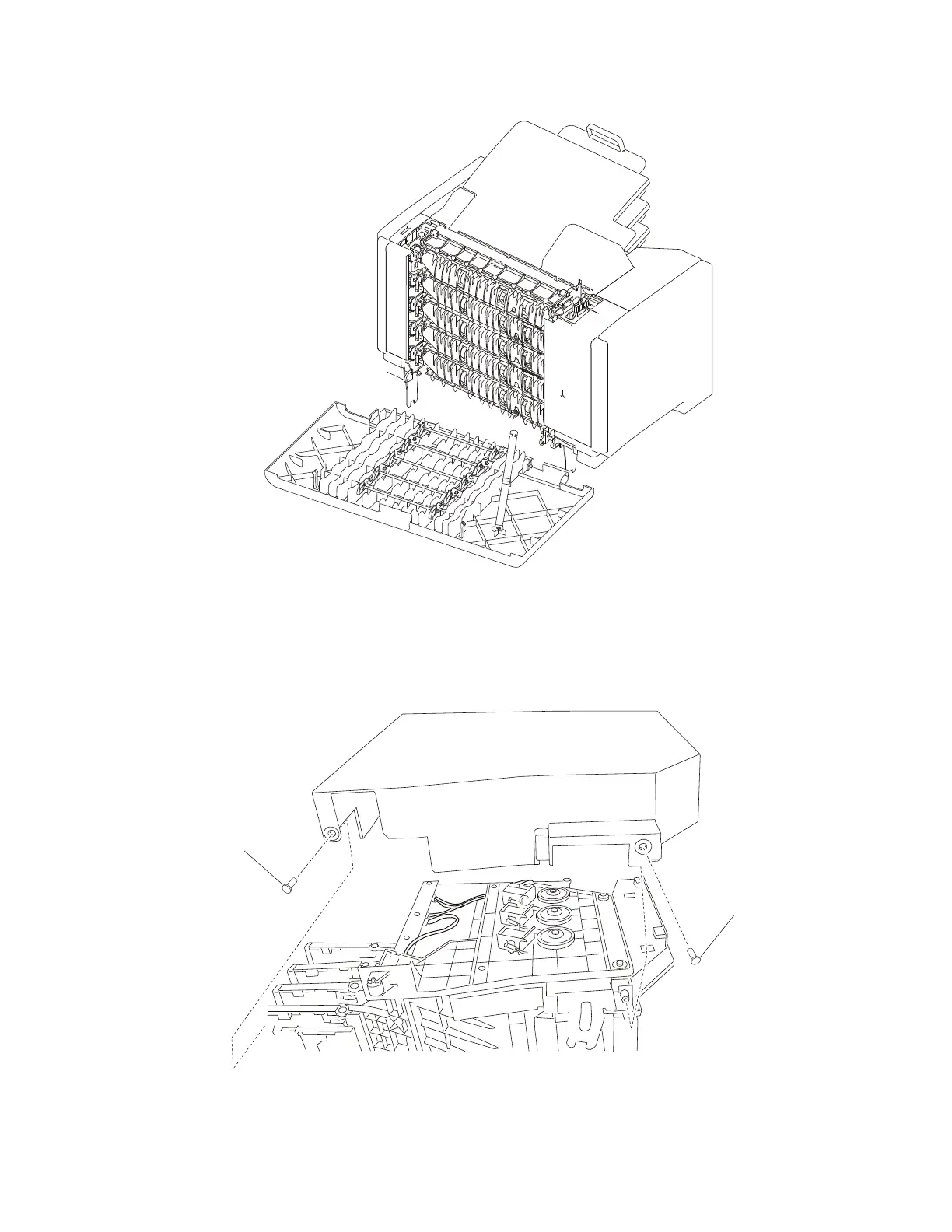

emove the rear door assembly
.
4-bin mailbo
x assembly right cover removal
1
Place the 4-bin
mailbo
x assembly on its side
.
2
R
emove the two screws (A) from the bottom side
of the right cover securing cover in p
lace.
A
A
3
Using your fingers, pull up on the top of the ri
ght
cover and pull out simultaneously to remove.
7462
R
epair information
390
389
391
