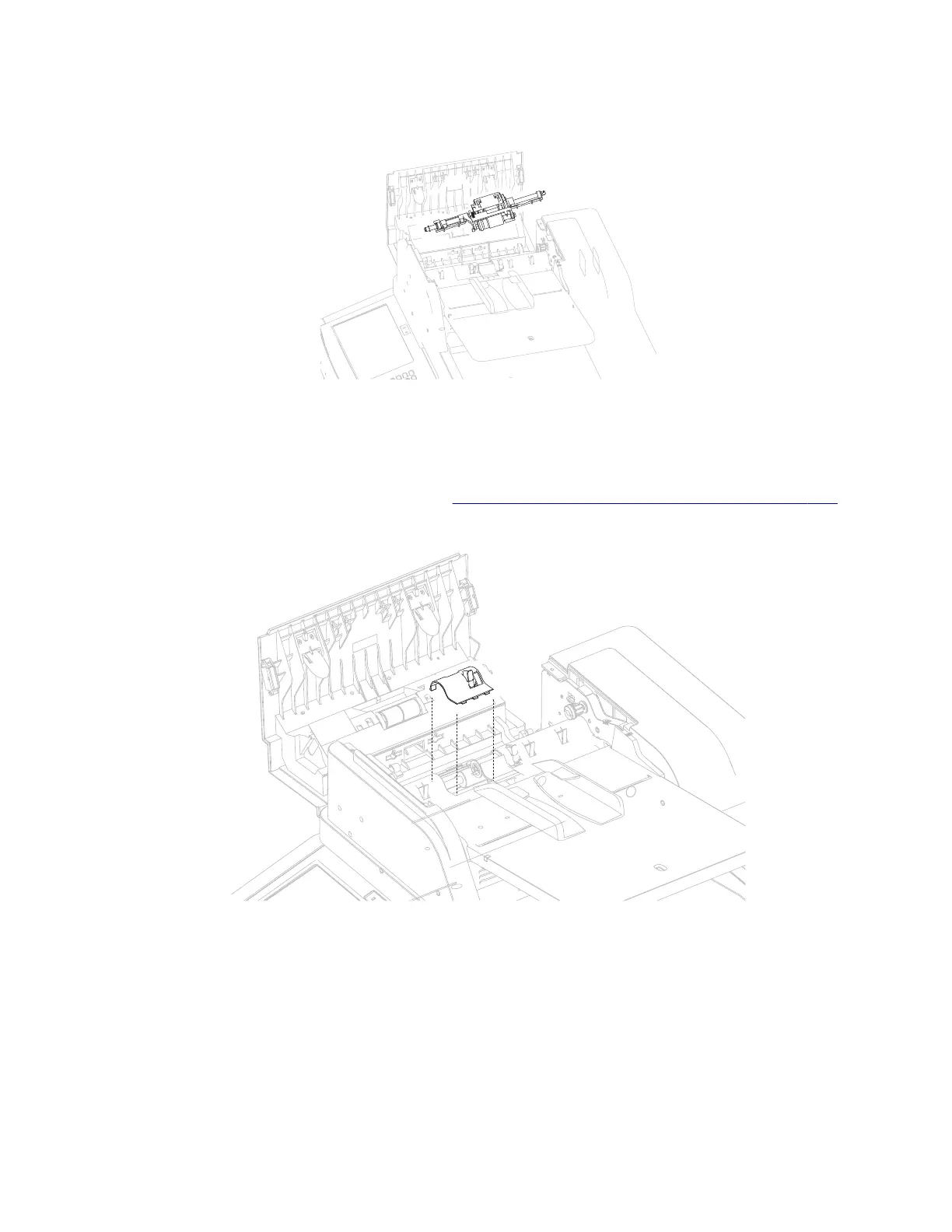

3 Lift the rear of the ADF pick roll assembly.
4 Remove the ADF pick roll assembly.
ADF separator roll removal
1 Lift the ADF top door assembly.
2 Remove the ADF feed/pick roll assembly. Go to “ADF feed/pick roll assembly removal” on page 534.
3 Remove the access cover.
7462
Repair information
535
