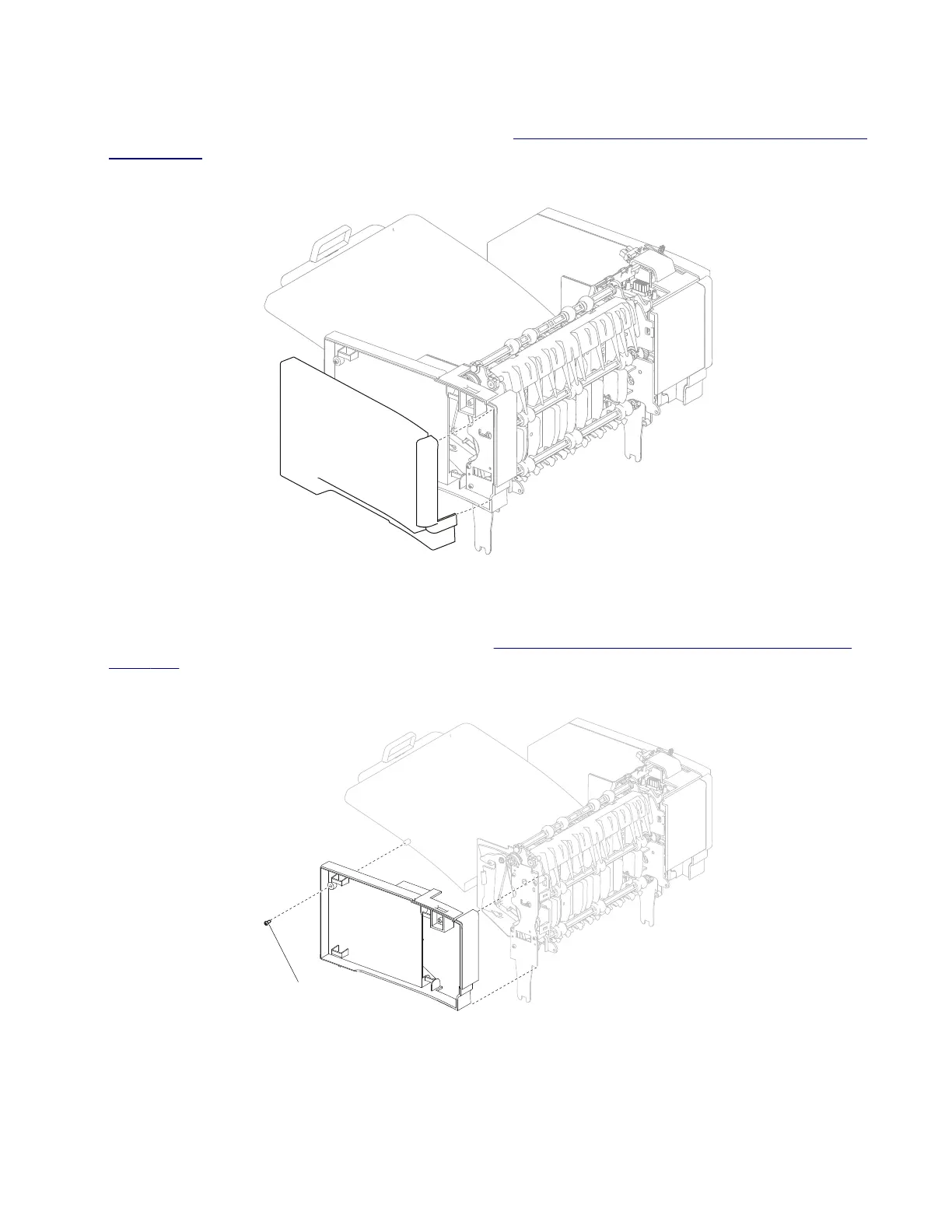

Output expander right outer cover removal
1 Remove the output expander rear door assembly. Go to “Output expander rear door assembly removal”
on page 473.
2 Grasp the lower rear corner of the right outer cover and pull out to remove.
Output expander right inner cover removal
1 Remove the output expander right outer cover. Go to “Output expander right outer cover removal” on
page 475.
2 Remove the screw (A) securing the right inner cover to the unit.
A
3 At the rear of the right inner cover, pull out from the option and remove the right inner cover.
7462
Repair information
475
