4 Remove the LED sensor cover.
Sensor (MFP stapler assembly
finisher
media bin present) removal
1 Remove the LED sensor cover. Go to “MFP stapler assembly LED sensor cover removal” on page 489.

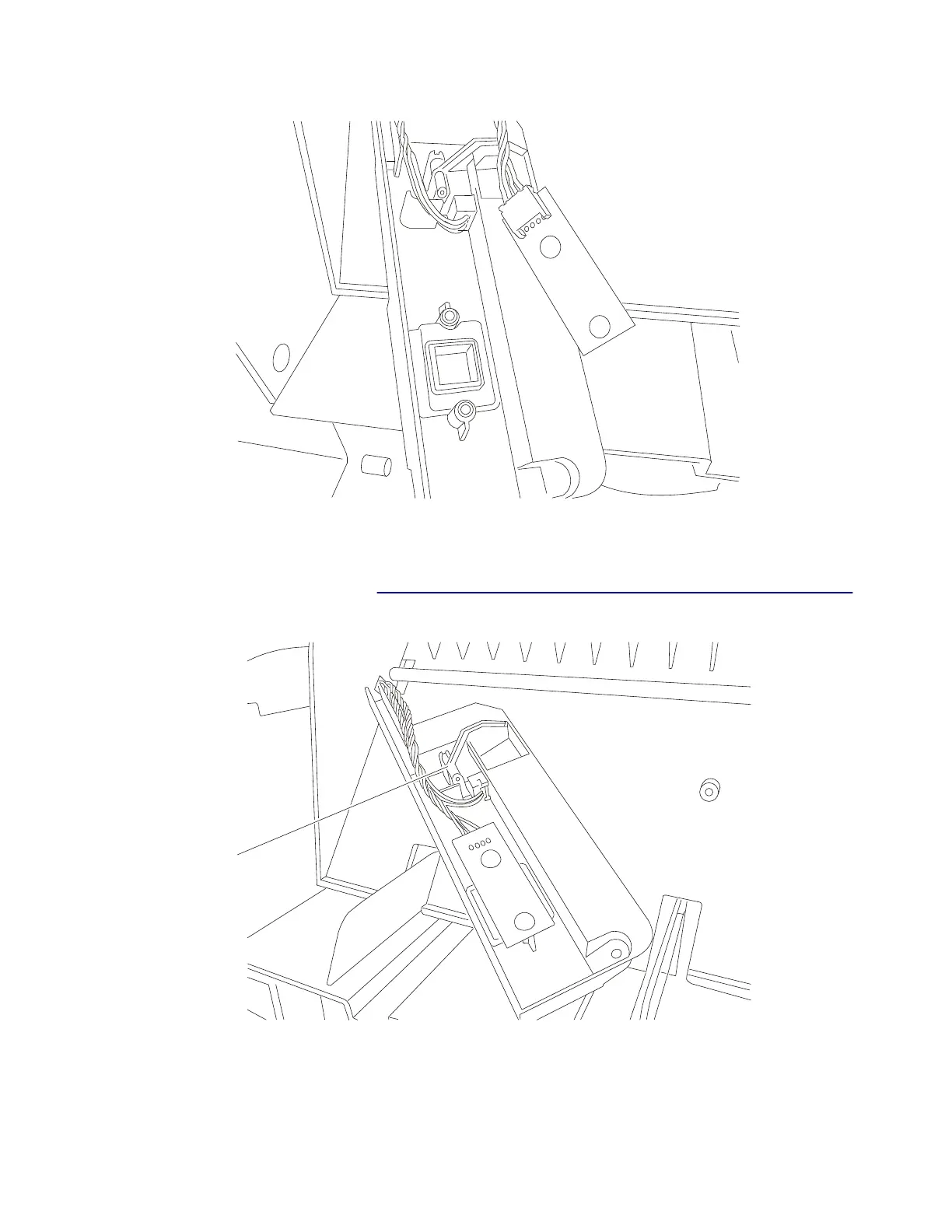

2 Using a flat-blade screwdriver, release the tabs (A) on the sensor and remove it from the sensor cover.
A
3 Remove the harness connected to the sensor (finisher media bin present).
4 Remove the sensor (finisher media bin present).
7462
Repair information
490
