Lexmark 7462 series - Printer Theory

Printer theory

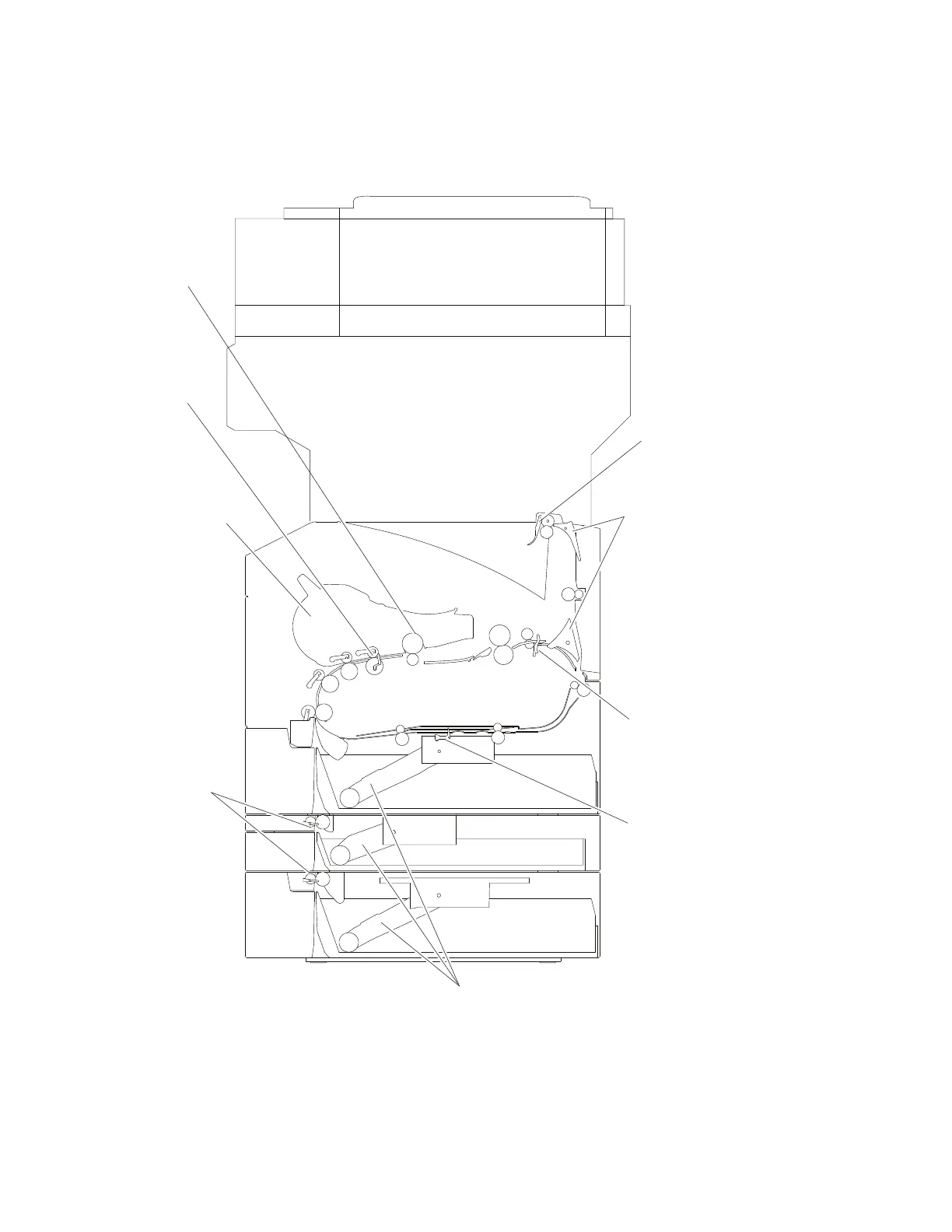

Models X651, X652, X654, and X656 paper path rolls and sensors
PC cartridge
Sensor (input)
PC drum
Standard bin full actuator
and sensor (standard bin full)
Diverter
Sensor
(duplex input)
Sensor (fuser output)
Sensor (narrow media)
Pick arm
assembly
Sensor (option
pass through)
7462
Appendix C: Theory of operation
