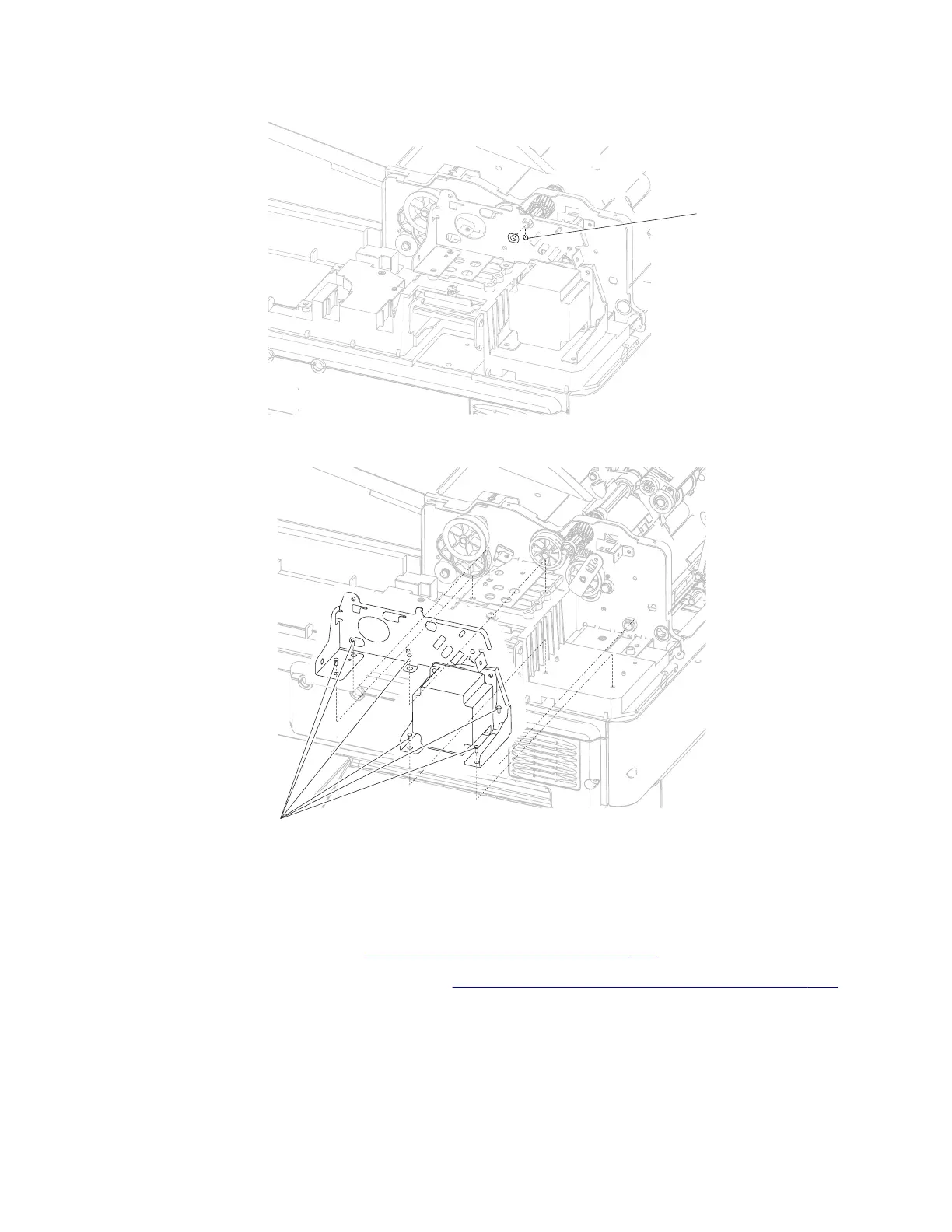

5 Remove the bushing from the pick roll feed shaft.
A
6 Remove the six screws (B) securing the ADF feed drive motor assembly to the ADF unit assembly.
B
7 Remove the ADF feed drive motor assembly to include the two belts and cable.
ADF pick roll position cam assembly removal
1 Remove the ADF front cover. Go to “ADF front cover removal” on page 537.
2 Remove the ADF feed/pick roll assembly. Go to “ADF feed/pick roll assembly removal” on page 534.
7462
Repair information
552
