REV 0, June 2005 Page 123
Operation Manual SUPREMA
5. Installation

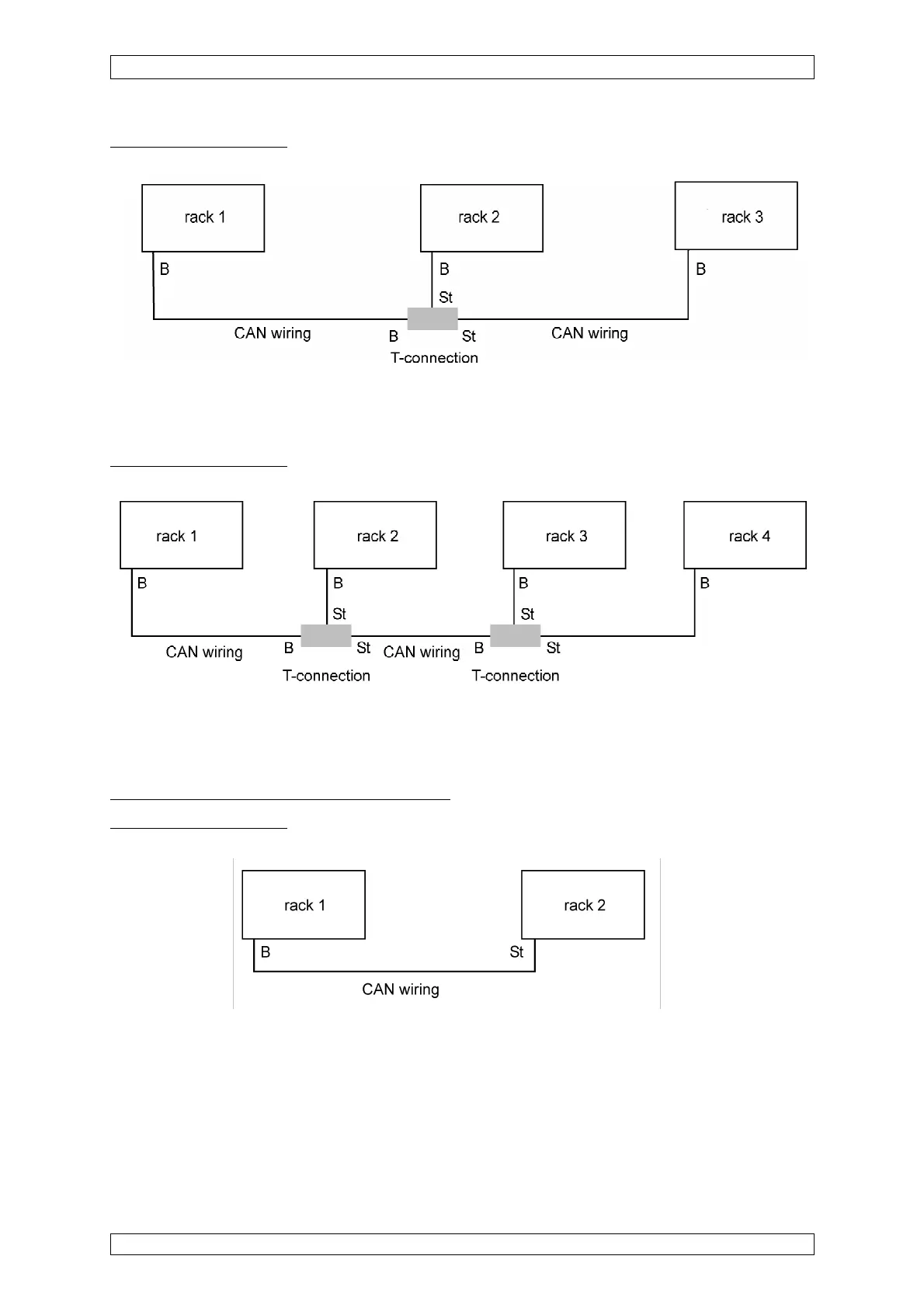

Connection of 3 Racks:
The CAN terminating resistor at Rack 1 and Rack 2 is not set, at Rack 3 it is set.
Connection of 4 Racks:
The CAN terminating resistor at Rack 1 is not set, at Rack 2 it is set.
The CAN terminating resistor at Rack 1, Rack 2 and Rack 3 is not set, at Rack 4 it is set.
For every further rack, a T-piece, ribbon cable and a CAN line socket/plug is needed.
MST Module G Status B (revised Version):
Connection of 2 Racks:
