Chapter 15: LPC13xx 16-bit timer/counters (CT16B0/1)
15.10 Architecture

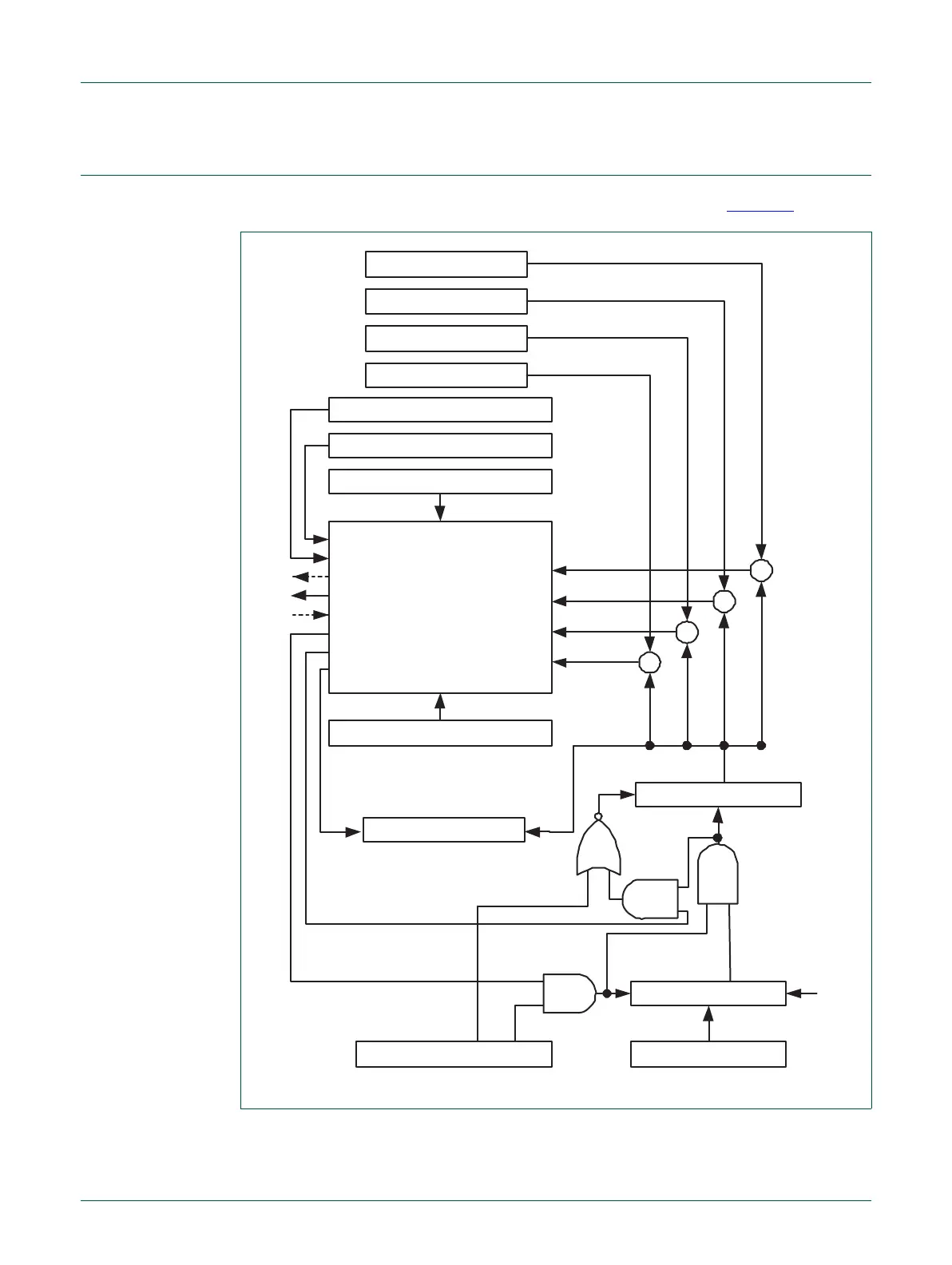

The block diagram for counter/timer0 and counter/timer1 is shown in Figure 52.
Fig 52. 16-bit counter/timer block diagram
reset
MAXVAL
TIMER CONTROL REGISTER PRESCALE REGISTER
PRESCALE COUNTER
PCLK
enable
CAPTURE REGISTER 0
MATCH REGISTER 3
MATCH REGISTER 2
MATCH REGISTER 1
MATCH REGISTER 0
CAPTURE CONTROL REGISTER
CONTROL
TIMER COUNTER
CSN
TCI
CE
=
=
=
=
INTERRUPT REGISTER
EXTERNAL MATCH REGISTER
MATCH CONTROL REGISTER
MATn[2:0]
INTERRUPT
CAP0
STOP ON MATCH
RESET ON MATCH
LOAD[3:0]
To Next Page
